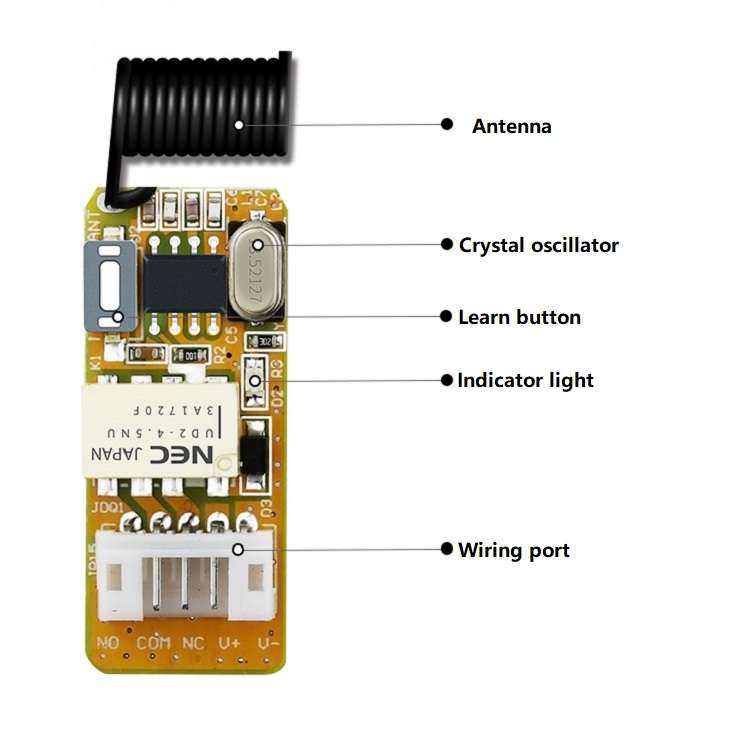

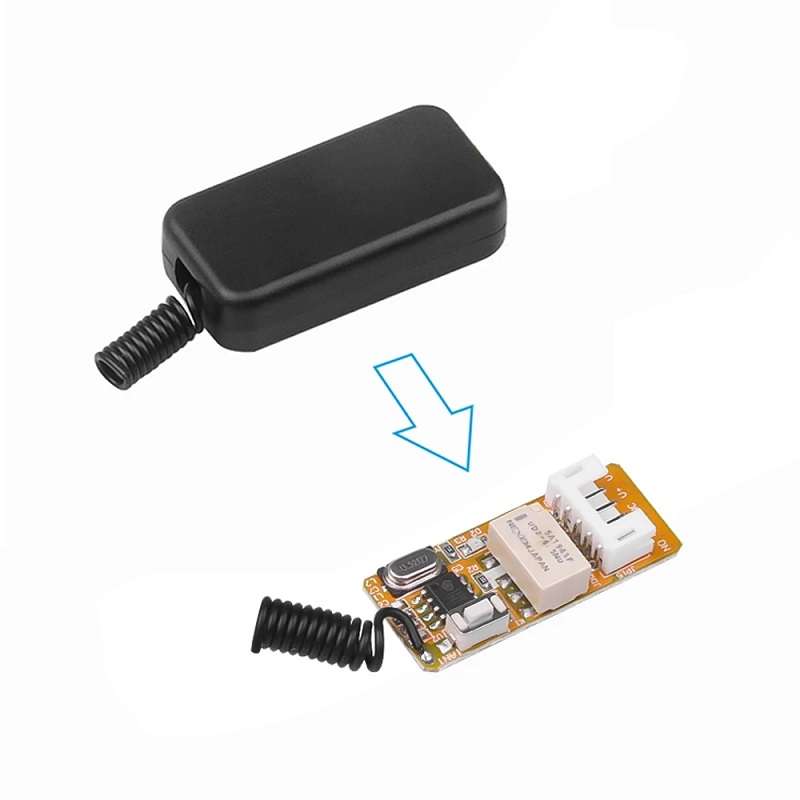

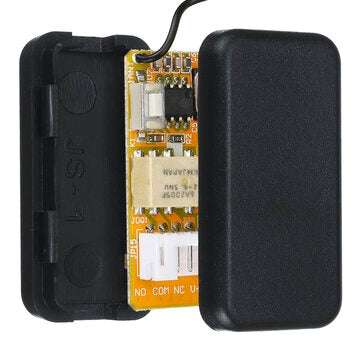

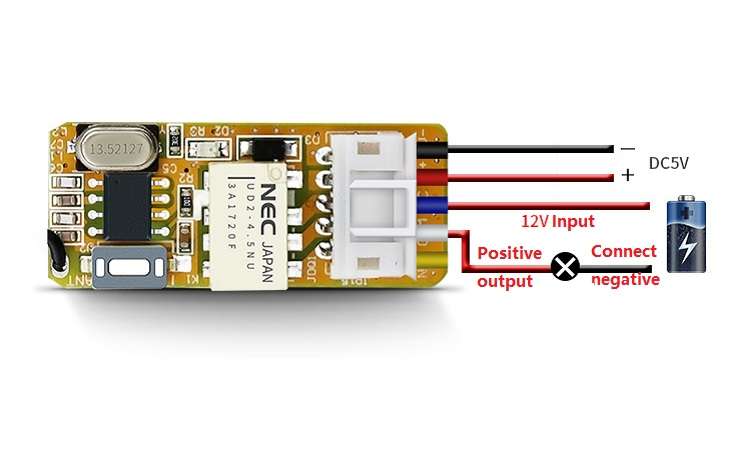

Feature: 1. The benefits of relay output: Provide isolated contact switches, which can control the on and off of signal lines, and mechanical button switch modification. It can also control 3-12V power supply on and off. 2. Easy to install, easy to use, can install this product in a small hide space, flexible use. 3. Signal penetrates the Wall: The highly sensitive receiving module can respond instantaneously even if the signal is weak. 4. Gain Antenna: It can be stretched for use, and the signal is more stable and the effect is better after stretching. 5. Easy Installation: The upper and lower cover has a movable buckle structure, which can be installed without tools.

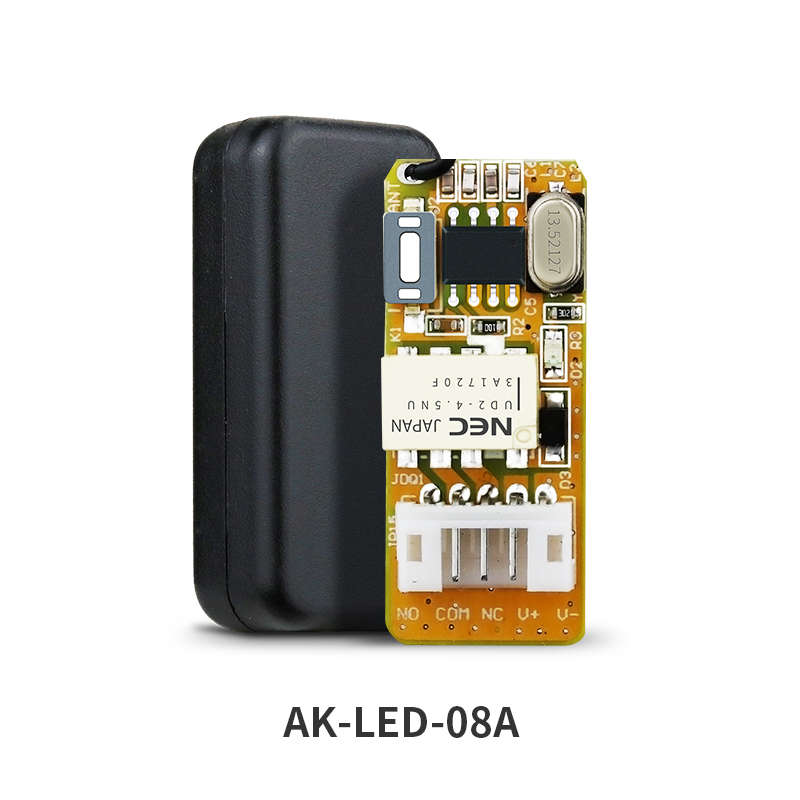

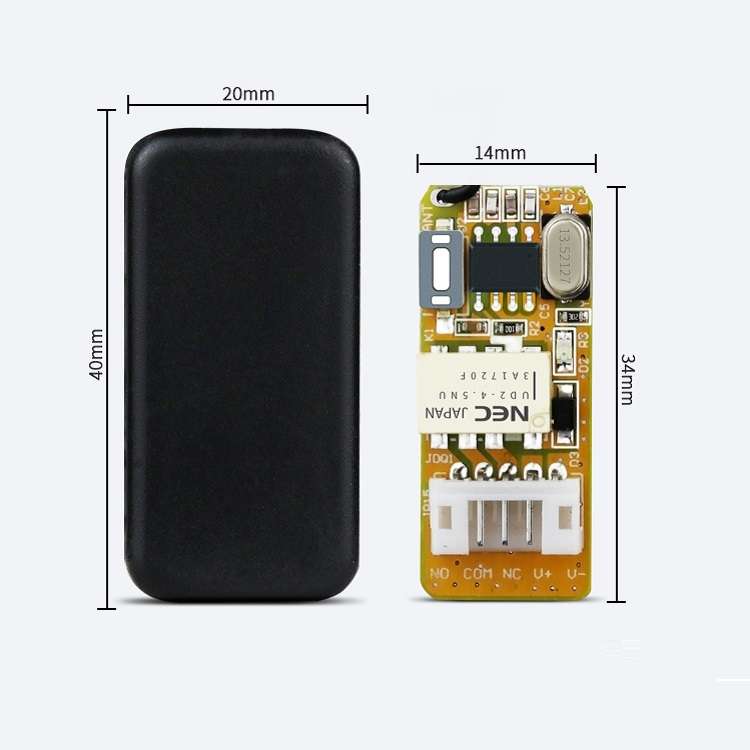

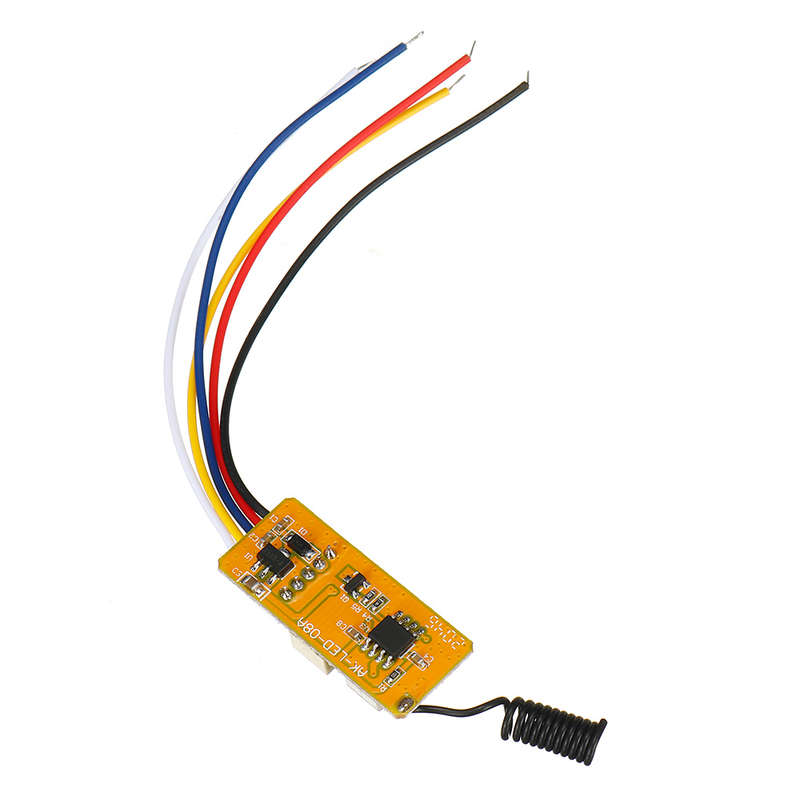

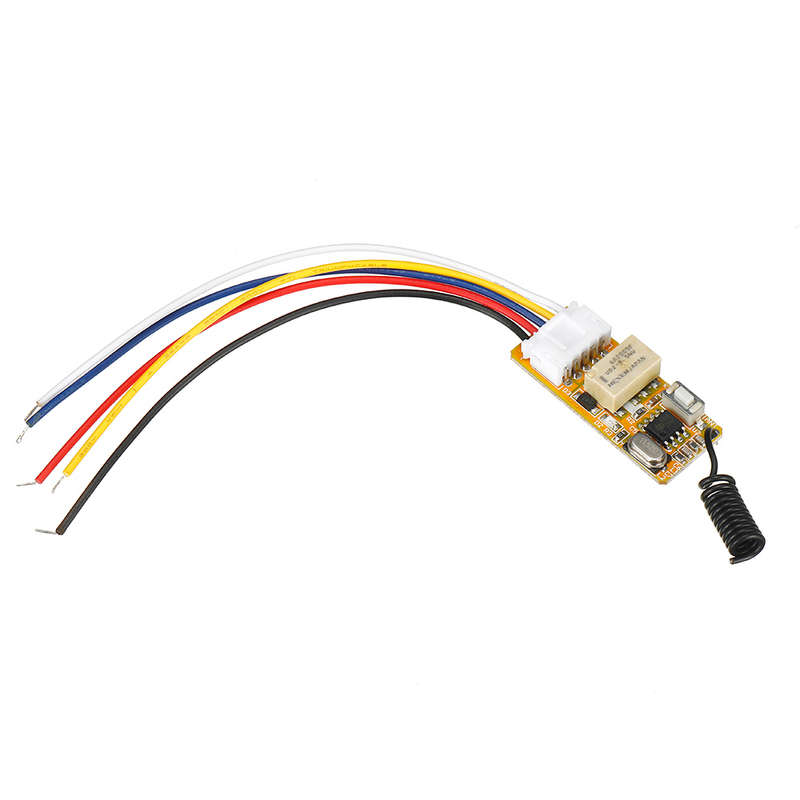

Specification: Model: AK-LED-08A Working Voltage: DC 3.6~12V Wireless Frequency: 433MHz Remote Control Distance: According to matching different remote control, the straight line distance is 30-80m/98.42-262.47ft Sensitive Signal: -110DBM Product Size: 40 X 20 X 10.5mm Applicable: Suitable for home LED lighting, routers, shop light box signs, luminous signs, monitoring equipment, servers, alarms, etc.
Warm Tip:
Jog/self-locking is recommended with 1 button remote control, interlocking is recommended with 2 button or 3 button remote control.
Study method: Jog/self-locking mode: 1. Jog code matching: After turning on the power, press the learning button to let go, the LED flashes once to enter the learning state, press the remote control A button, the LED flashes quickly and then the learning is successful.
2. Self-locking code matching: After turning on the power, press the learning button twice to let go, the LED flashes twice to enter the learning state, press the remote control A button, the LED flashes quickly and the learning is successful
Interlock mode: 1. Interlockings code: After turning on the power, press the learning button 3 times, the LED flashes 3 times to enter the learning state, press the remote control A button, the LED flashes 3 times, and then press the remote control B button and the LED flashes quickly to learn success
2. Delay for five seconds: Press the control panel pairing button 4 times in a row, the LED indicator flashes 4 times, after the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times in a row The code pairing is successful.
3.Delay for
ten seconds : Press the control panel pairing button 5 times continuously, and the LED indicator will flash 5 times. After the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator will flash 3 times in a row. The code pairing is successful.
4. Fifteen seconds extension: Press the control panel pairing button 6 times continuously, the LED indicator flashes 6 times, after the LED indicator lights up, press the remote control button that needs to be paired, the control panel LED indicator flashes 3 times continuously The code pairing is successful.
5. If you want to change the working mode, please clear the code first: After pressing the learning button on the control panel 8 times in succession, all the remote controls that have learned the code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

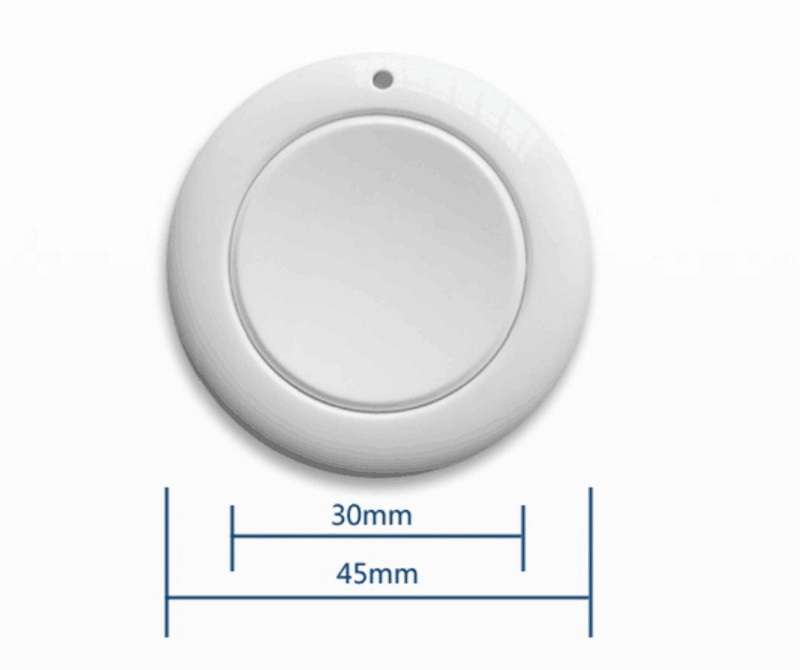

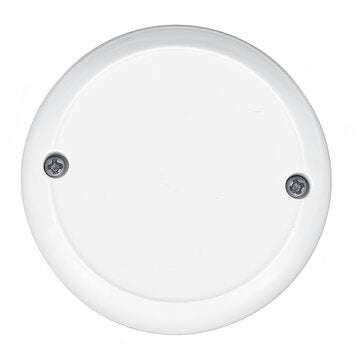

Package included: 1 x LED Wireless Control Module 1 x Remote Control
