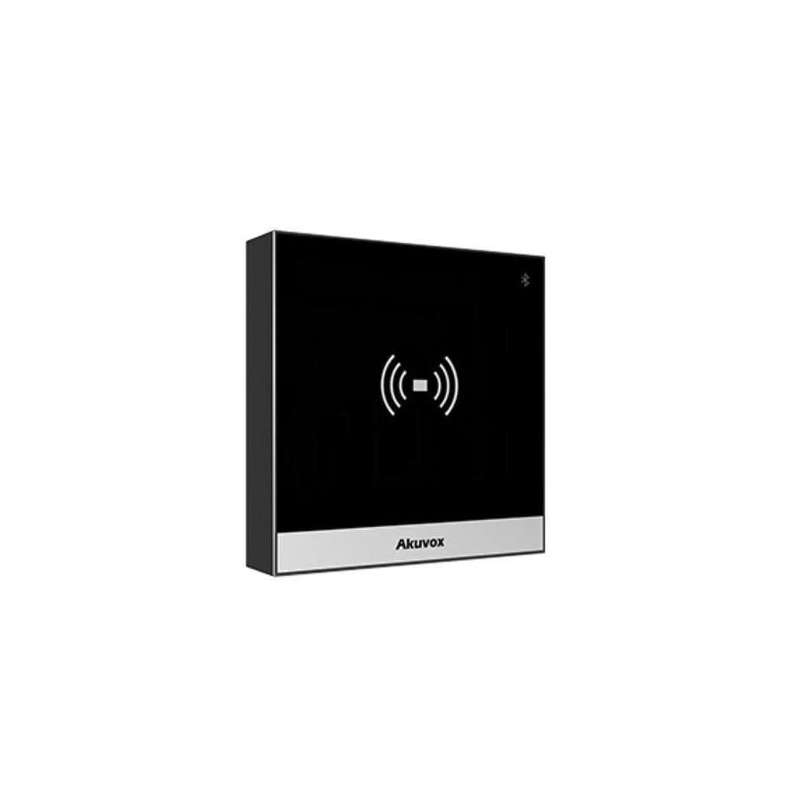

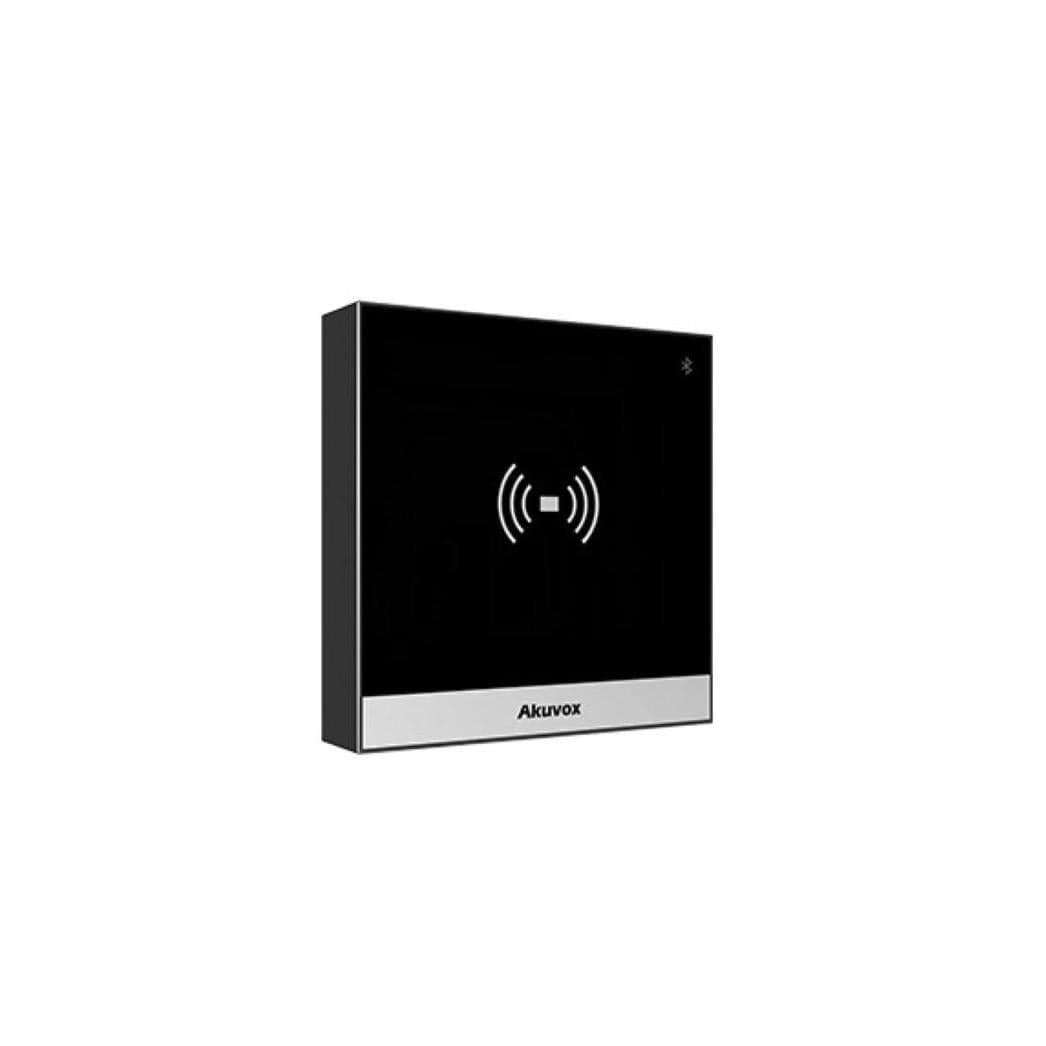

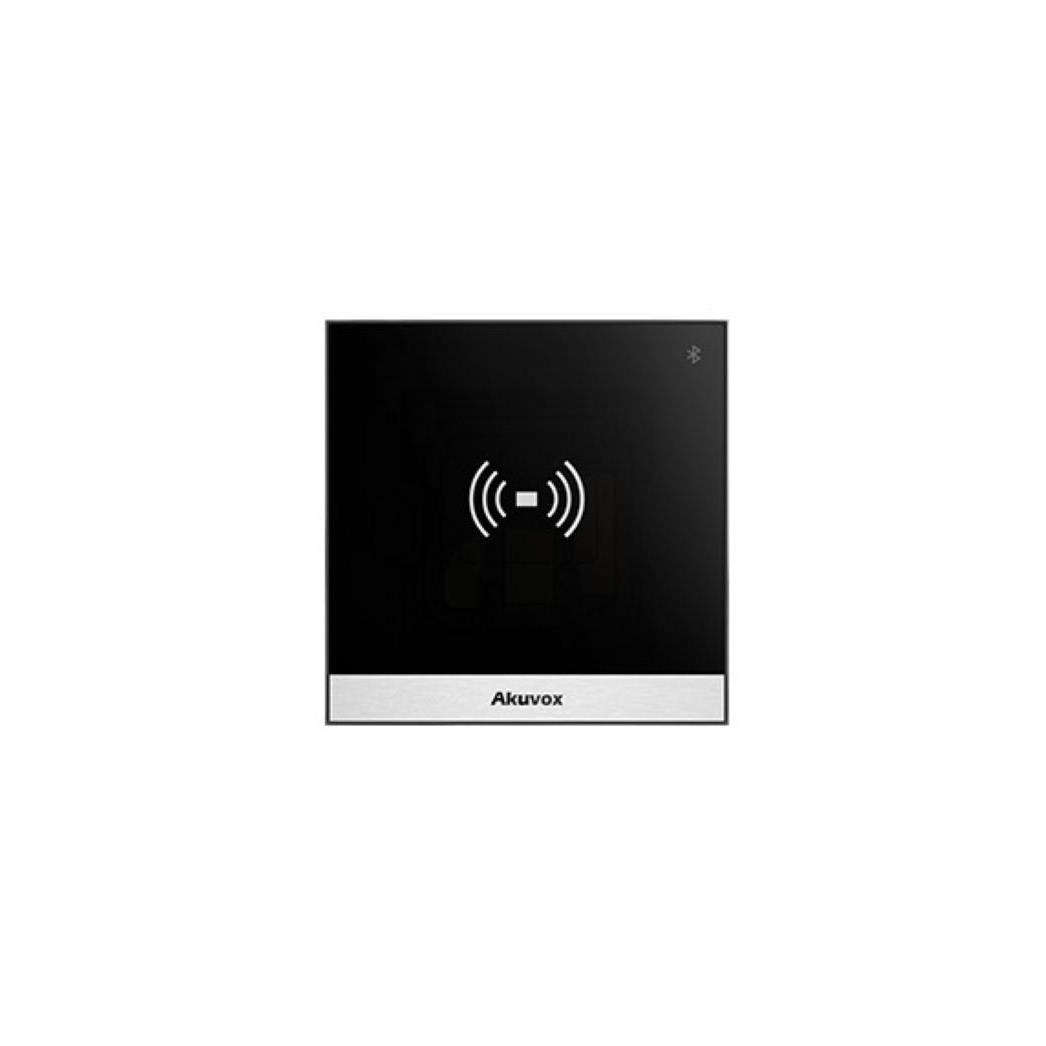

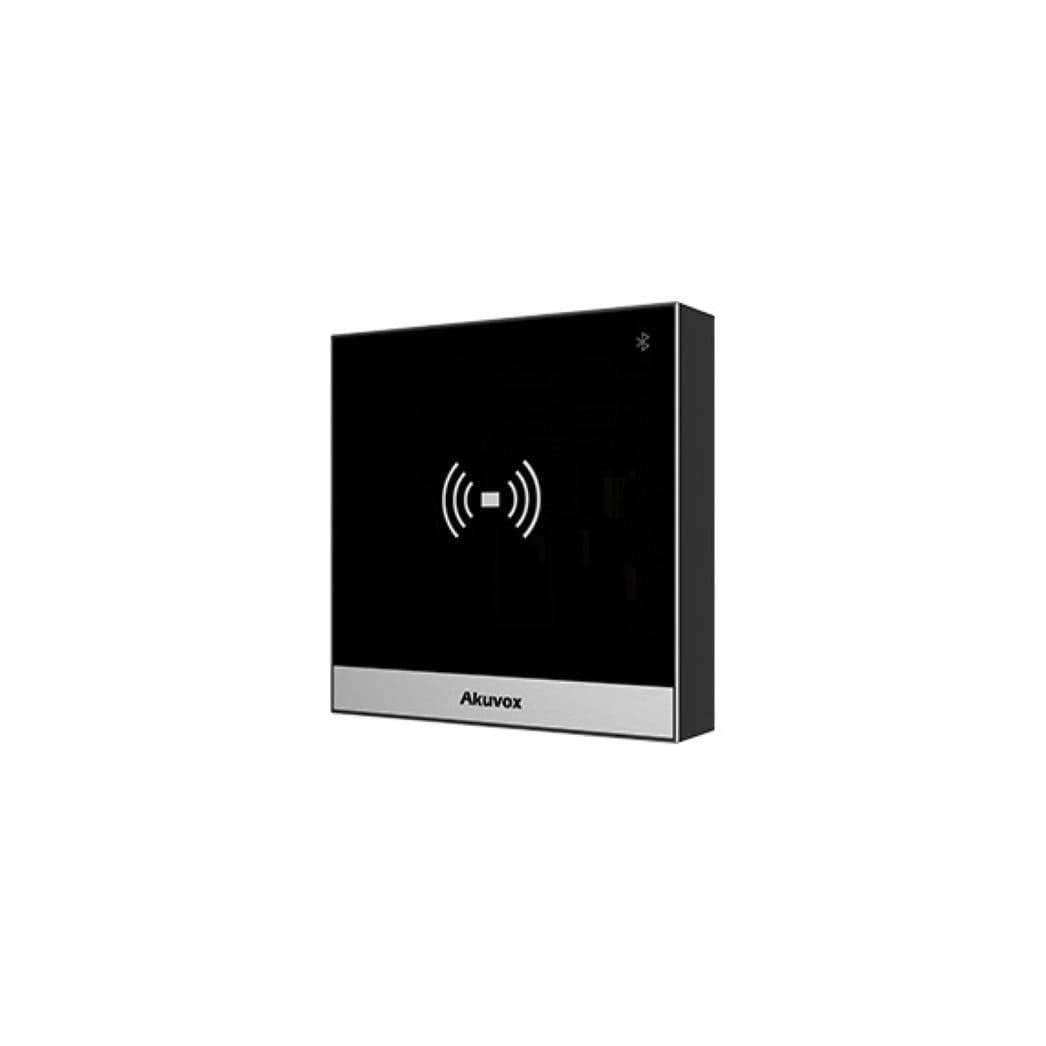

Akuvox A03 RFID Access Control Terminal
A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.
Two Devices in One
A03 is a door controller and a reader in one, which means it can work standalone or be networked with other systems.
Wave-to-unlock Access
A03 offers flexible credential options, including BLE, NFC, and RFID. Users can wave a hand to unlock doors when A03 is linked to the Akuvox My MobileKey app via the BLE.
Installer-friendly Deployment
Supporting PoE, A03 only requires a network cable for installation. With a compact size, it is perfect for buildings with limited installation space.
Ease of Integration
With the API available, it is possible to integrate A03 with various 3rd-party systems, such as elevator controllers, existing access control units of buildings, and time-attendance systems.
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs
Door Entry Feature
- Access schedule export/import
- Access level management
- Support switch to reader mode
- Door access logs query and export
- Flexible shift scheduling and attendance
- management
Specifications:
Front panel: Toughened Glass
Frame: Aluminum Alloy
RFID card reader: 13.56MHz & 125kHz
Bluetooth: BLE5.0
Relay out: 1
Inputs: 2
Wiegand: Support
Speaker: 8 / 0.5W
Tamper proof alarm: Support
Ethernet port: RJ45, 10/100Mbps adaptive
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Power output: 12V 600mA
IP Level: IP65
Installation: Flush-mounted or Wall-mounted
Dimension: 86 x 86 x 33 (mm)
Working Humidity: 10~90%，no condensing
Working Temperature: -20°C ~ +55°C
Storage Temperature: -30°C ~ +70°C
Capacity
User Capacity: 20,000
Card Capacity: 20,000
Event Log: 100,000
