Albatross V2 Antenna 90mm

New 14 available
R223.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
6894226
Bob Shop ID
639666122

Description

Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

Features

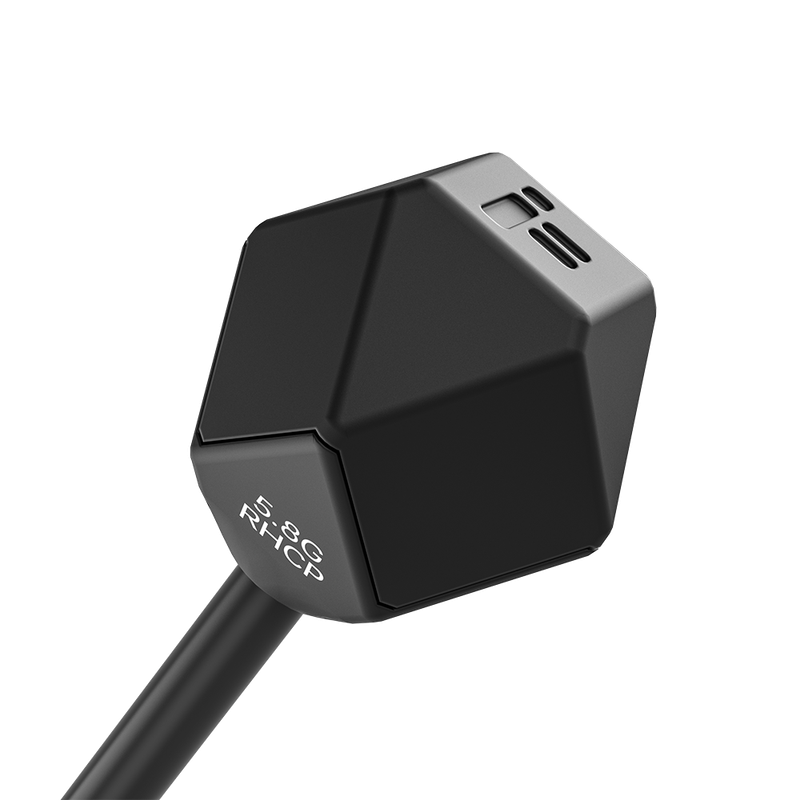

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

Achieves higher consistency in antenna gain, thereby improving device performance and stability.

RHCP Specifications

Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

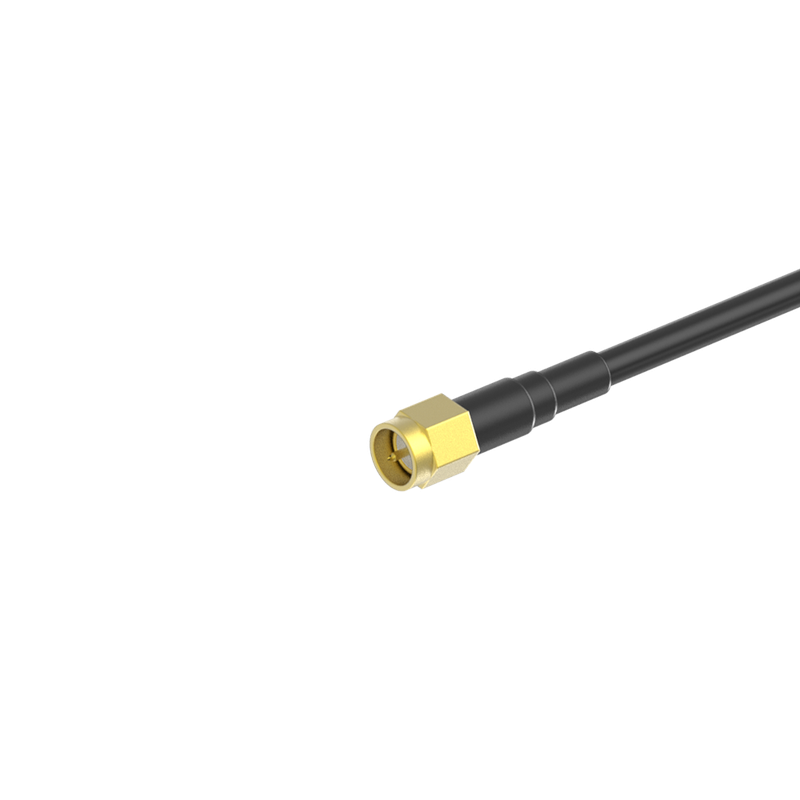

Interface: RHCP SMA

Frequency range: 5.3GHz-6GHz

Max Gain: 2.65dBi (5695MHz)

MIN Gain: 2.06dBi (5362MHz)

AVG Gain: 2.4dBi

MAX VSWR: 1.76(5917MHz)

MIN VSWR: 1.46(5621MHz)

AVG VSWR: 1.75

MAX radiation efficiency: 86%(5436MHz)

MIN  radiation efficiency: 76%(5917MHz)

AVG radiation efficiency: 83%

Polarization: RHCP

Cross polarization suppression: -25dB

Axial Ratio:3

Cable: RG141

Weight: 7g

Size: Total length: 90mm(±2mm), cable length:60mm

LHCP Specifications

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

Interface: LHCP

Frequency range: 5.3GHz-6GHz

Max Gain: 2.72dBi (5621MHz)

MIN Gain: 2.12dBi (5436MHz)

AVG Gain: 2.42dBi

MAX VSWR: 1.72(5326MHz)

MIN VSWR: 1.35(5917MHz)

AVG VSWR: 1.62

MAX radiation efficiency: 84.25%(5917MHz)

MIN  radiation efficiency: 73.5%(5326MHz)

AVG radiation efficiency: 80.3%

Polarization: LHCP

Cross polarization suppression: -26.7dB

Axial Ratio:3

Cable: RG141

Weight: 7g

Size: Total length: 90mm(±2mm), cable length:60mm

Packing List

1 x Albatross V2 5.8GHz 60mm Antenna

Note: FPV frame not included!
