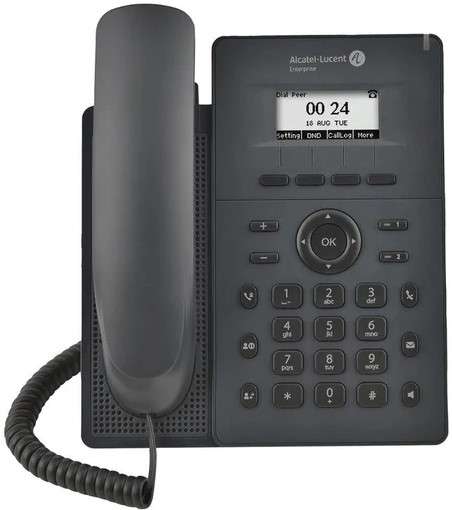

Alcatel-Lucent H2P 2-Line SIP Handheld Deskphone - Adjustable foot stand 45° to 50°, 2.3 inches graphical black and white 128x64 LCD with backlight, 2 Line keys (Line 1/2) with LED, 4 menu keys, Volume control keys (+ and -), 4-way navigation + OK, Hands-free, mute, and message keys, Call hold, call transfer, and redial key, Dial pad Telephony features
Product Overview
The H2 and H2P DeskPhones from Alcatel-Lucent Enterprise are compact, modern SIP devices delivering a rich communication experience at a competitive price. They feature wideband HD audio, echo cancellation, a backlit display with 4 lines of text, a directory for up to 1000 contacts, call logs, navigation button, and 4 menu keys for ease of use. Ideal for small offices and hotel rooms, the H2P model supports Power over Ethernet (PoE) for flexible deployment and compatibility with major open SIP servers
Specifications
Product Code: 3MK27005AA
Description: Alcatel-Lucent H2P 2-Line SIP Handheld Deskphone
Color: Gray
Adjustable foot stand: 45° and 50°
Wall mountable Display
Visible area: 2.3 inches graphical black/white 128x64 LCD with backlight
Viewing area (WxH): 53.2x25.8mm (2.1x1.0 inches) Keys
2 Line keys (Line 1/2) with LED
4 menu keys
Volume control keys (+ and -)
Navigator: 4-way navigation + OK
Hands-free, mute, and message keys
Call hold, call transfer, and redial key
Dial pad Telephony features
2 SIP accounts
Call forward, call waiting, call transfer, call hold/resume, redial
Mute/unmute, voicemail, DND, auto answer
Local 3-party conference
Call log (1000), local contacts (1000) Audio characteristics
G.722, OPUS, iLBC
G711 (A-law and Mu-law), G.729AB
VAD (Voice Activity Detection), Comfort Noise Generation (CNG)
Acoustic echo cancellation
DTMF: In-Band, RFC2833, SIP INFO
Hearing Aid Compatible (HAC) Power
H2P: Power over Ethernet (IEEE 802.3af), Class 1
External Power supply: 5V/0.6A (Optional accessory) Connectivity
RJ-45 LAN: 10/100M Ethernet
RJ-45 PC through 10/100M Ethernet switch
RJ-9 connector for corded handset
RJ-9 connector for headset Network and protocols
SIP V2: RFC 2474, 2833, 3261, 3263, 3264, 3265, 3550, 4566, 5359, 6086 Static IP and DHCP
IPv4/IPv6
LLDP-MED QoS: 802.1p/Q tagging (VLAN), Layer 3 TOS, DSCP
TR069 Configuration
Web-based management
ALE Easy Provisioning Server (EPS)
ALE Easy Deployment Server (EDS) Security
H Series support OpenVPN
Authentication: Basic or digest, 802.1x
Denial of Service (DoS) attack protection: Flooding
ARP Spoofing protection
Transport: TLS 1.2/1.0 and SRTP
Shipped with (X509v3) certificate installed ¬ Certificates for 802.1x EAP-TLS (either Alcatel-Lucent or customer certificates)
Supporting SHA2 ALE Certificate, SCEP Languages
ICES-003 Issue 6
Telecom
TIA/EIA 810-B, TIA 920.130-A-1, AS/ CA S004 Eco design
ErP 2009/125/EC, WEEE 2012/19/EU ROHS 2011/65/EU, CHINA ROHS 2: GBT 26572-2011
REACH: European regulation: N° 1907/2006 Proposition 65 Packaging: EU Directive 94/62/EC Hearing aid compatibility
FCC 47 CFR Part 68, Industry Canada CS-03, Australia AS/ACIF S040 Environmental Conditions
Operating temperature: -5°C to +45°C
Relative humidity: 5% to 95% Storage/transportation temperature: -25°C/+70°C Accessories
H2/H2P DeskPhone
Wired wideband handset
Foot stand
3m Ethernet cable (cat5e)
Safety sheet
Quick user guide
