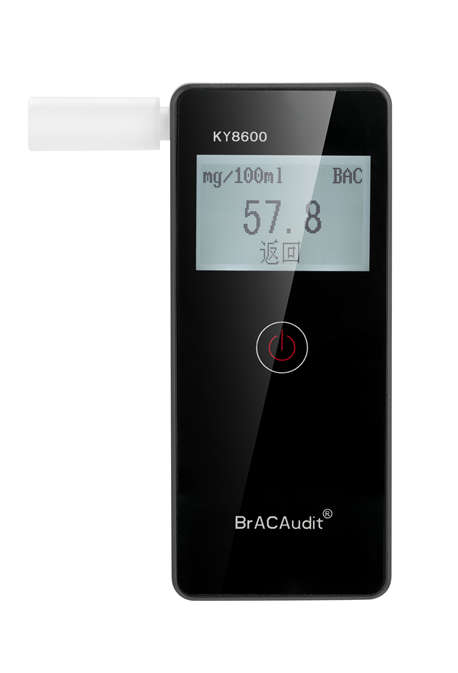

Alcohol Tester KY-8600

Details

Technical Data

Measurement Principle

Electrochemical sensor

MeasurementRange

0.000mg/L～2.500 mg/L

Resolution

0.001 mg/L

Accuracy:

Measurement Error, in relation to the ethanol standard

MeasurementRangeC / ( mg/L)

Measurement Error

C<0.400

±0.020 mg/L

0.400C<1.000

±10%

C1.000

±20%

Calibration

Every 6 months

Temperature range - operation

0°C～40°C

Temperature range

storage

-30°C～70°C

Optimum Storage Conditions

Temperature：20°C±5°CHumidity：<80%RH Pressure：86 kpa～106 kpa

No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device

Blowing Time

2.5seconds（breath flow：20L/min）

Display

128X64 black and white screen

Dimension(LXWXT)

105mm）×45mm×17mm

Batteries

      7 alkaline dry batteries  1.5AAA*2

Weight

Approx. 75g (including battery)
