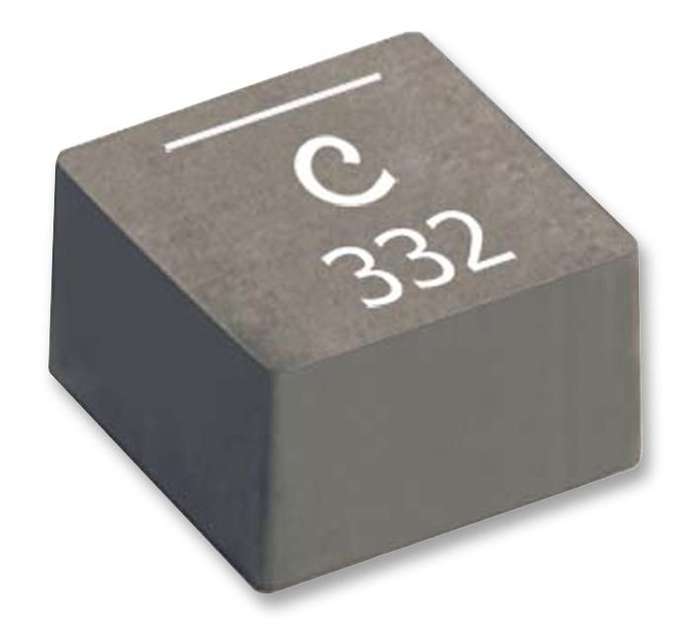

Coilcraft (XAL4030-332MEC) Power Inductor (SMD), 3.3 µH, 6.6 A, Shielded

Power Inductor (SMD), 3.3 µH, 6.6 A, Shielded, 5.5 A, XAL40xx, 4mm x 4mm x 3.1mmProduct InformationInductance: 3.3µHRMS Current (Irms): 6.6AInductor Construction: ShieldedSaturation Current (Isat): 5.5AProduct Range: XAL40xxPower Inductor Case: 4mm x 4mm x 3.1mmDC Resistance Max: 0.0286ohmInductance Tolerance: ± 20%Product OverviewThe XAL4030-332MEC is a surface mount high current shielded Power Inductor withcomposite core and tin-silver (96.5/3.5) over copper terminations. Resistance tosoldering heat maximum three 40 seconds reflows at +260°C, parts cooled to roomtemperature between cycles. This inductor features moisture sensitivity level(MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 perbillion hours/26,315,789 hours, calculated per Telcordia SR-332 and tested toMIL-STD-202 method 215 plus an additional aqueous wash. The DC current at 25°Ccauses an inductance drop of 30% typical from its value without current andInductance tested at 100kHz, 0.1Vrms, 0Adc.High current and very low DCRHalogen-freeSoft saturationAEC-200 grade 1 qualified
