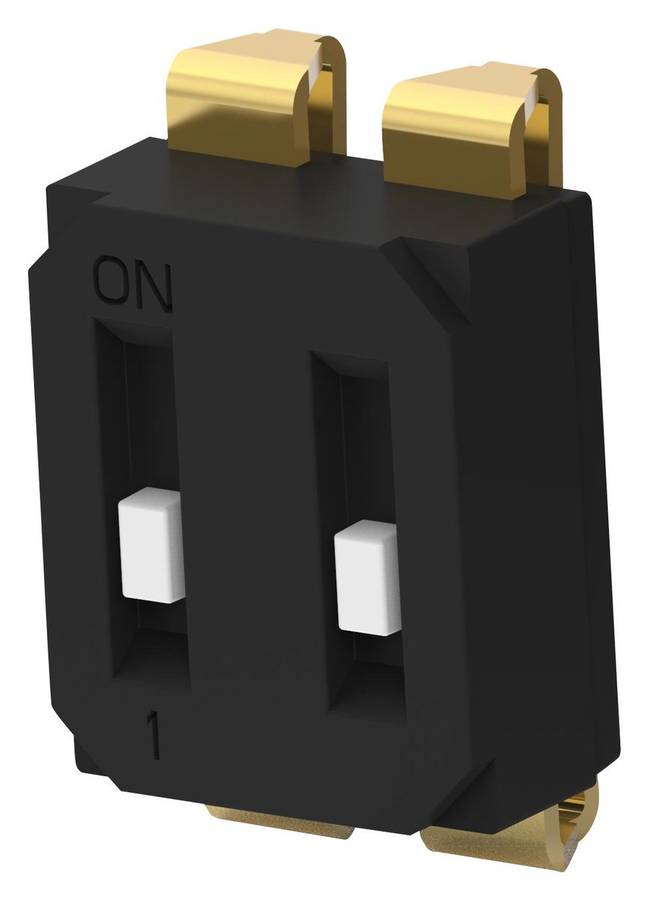

Alcoswitch (EDS02SNRNTR04Q) DIP / SIP Switch, SPST, 24 V, 25 mA

Alcoswitch (EDS02SNRNTR04Q) DIP / SIP Switch, SPST, 24 V, 25 mA

New 792 available
R165.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2792735
Bob Shop ID
645123260
DIP / SIP Switch, Recessed Type, 2 Circuits, Slide, Surface Mount, SPST, 24 V,25 mAProduct InformationNo. of Circuits: 2CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Surface MountSwitch Type: DIP UnsealedContact Voltage DC Max: 24VContact Current DC Max: 25mAProduct Range: EDSProduct OverviewThe EDS02SNRNTR04Q from Alcoswitch - TE Connectivity is a 2 pole, end stackableDIP switch with recessed actuator. The end-stackable design saves space on thePCB and allows for large position counts without sacrificing 2.54mm centrelinespacing. Available with gold contact plating which enables high reliability andcorrosion resistance. Typical application includes mated control boards, fireand security systems, thermostats, elevator/escalator and telecommunicationdevices.PA(high temperature nylon) base and cover, UL-94V0 flammability rating, SPSTconfigurationSMT J lead terminalsLCP actuator, copper alloy with gold plated contactsBrass alloy with gold plated terminalContact rating is 100mA at 50VDC(non switching), 25mA at 24VDC(switching)Initial contact resistance max is 100mohm at 2VDC, 10mAMinimum insulation resistance is 100Mohm at 500VDCDielectric strength is 500VAC(50Hz or 60Hz), durability is 2000cycle,capacitance is 5pF max at 1MHzOperating temperature range from -20°C to 85°CApplicationsIndustrial, Automation & Process Control, Security
Add to cart
