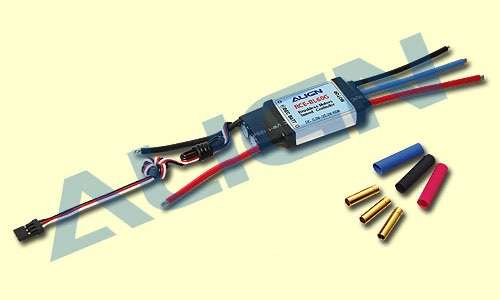

ESC | Align RCE-BL60G |
Manufacturer | Align |
Applications | Heli/Airplanes/Sailplanes |
Special Features | Governor Mode |
Cont/Max Amp | 60/70A |
Cells NiMH/NiCD | 6-18 cells |
Cells Li-poly | 2-6 cells |
Voltage | 5.5-25.2V |
Programming | Fully Programmable |
Type/Max BEC (A) | Linear/3-5A |
Max #Servos/V | 3-5/5.5V |
Dimensions | 65mm x 28mm x 12mm |
Weight | 55g |
The Align line of brushless sensorless speed controllers is an excellent choice for small power airplanes, sailplanes or helicopters. You can use them with virtually any brushless outrunner or inrunner motor, even high pole count motors (10+ poles).
- Heli or Plane programmable brushless ESC
- Small and compact PCB design for ease of installation
- Large heatsink for great thermal performance
- High compatibility to work with 98% brushless motors in the market
- Ultra smooth motor start design to run with all kinds of brushless motors
