Allegro Microsystems (ACS758ECB-200U-PFF-T) Current Sensor, 3.3 V, 5 V

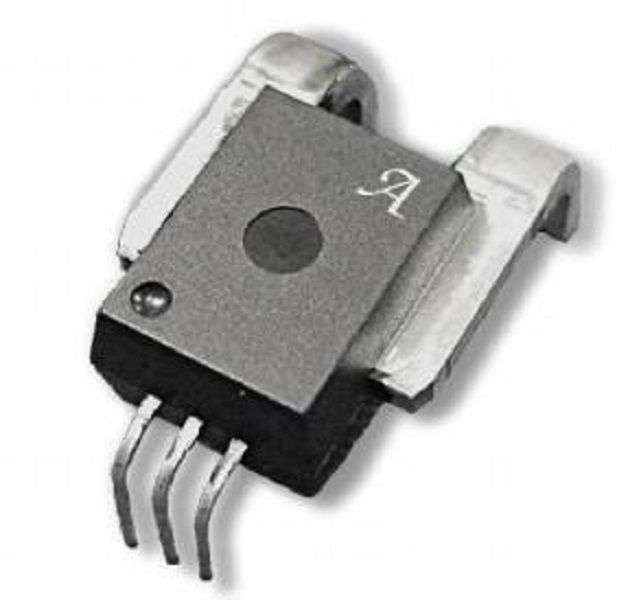

Current Sensor, Current Conductor, 10 mA, 120 kHz, PFF, 5 Pins, 3.3 V, 5 VProduct OverviewThe ACS758ECB-200U-PFF-T is an Allegro thermally enhanced, fully integrated,hall effect-based Linear Current Sensor IC with 100µR current conductor. Itprovides economical and precise solutions for AC or DC current sensing. Thedevice consists of a precision, low-offset linear hall circuit with a copperconduction path located near the die. Applied current flowing through thiscopper conduction path generates a magnetic field which the hall IC convertsinto a proportional voltage. Device accuracy is optimized through the closeproximity of the magnetic signal to the hall transducer. A precise, proportionaloutput voltage is provided by the low-offset, chopper-stabilized BiCMOS hall IC,which is programmed for accuracy at the factory. High level immunity to currentconductor dV/dt and stray electric fields, offered by Allegro proprietaryintegrated shield technology, provides low output voltage ripple and low offsetdrift in high-side, high voltage applications.Industry-leading noise performance through proprietary amplifier and filterdesign techniquesTotal output error improvement through gain and offset trim over-temperatureMonolithic hall IC for high reliability100µR Internal conductor resistance ultra-low power lossGalvanic isolation allows use in economical, high-side current sensing in highvoltage systemsApplicationsMotor Drive & Control, Power ManagementProduct InformationQuiescent Current: 10mABandwidth: 120kHzSensor Case Style: PFFNo. of Pins: 5PinsSupply Voltage Min: 3.3VSupply Voltage Max: 5VOperating Temperature Min: -40°COperating Temperature Max: 85°C
