Allen & Heath CQ-12T 10-Channel Digital Mixer

Allen & Heath CQ-12T Compact 12-Channel Digital Mixer with Touchscreen

Mix and record with the Allen & Heath CQ-12T, a compact digital mixer featuring 96 kHz FPGA processing, Bluetooth, wireless control, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage.

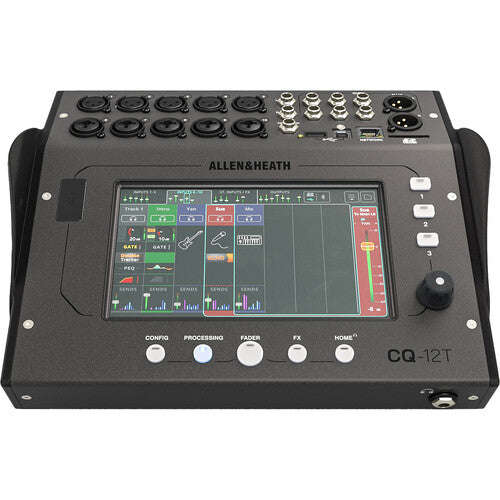

The CQ-12T mixer utilizes a 7 capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM). Take control of the full complement of channel strip effects like EQ, compression, and gating that's available on every channel and set up several sub-mixes for monitoring and effects. The CQ-12T features 10 mic/line XLR/combo XLR-1/4 inputs, a pair (for stereo) of 1/4 balanced inputs, two balanced XLR main outputs, and six 1/4 mix outputs. There is an assignable headphone output. The mixer ships with a 12 VDC power supply.

• 10 Mic/Line In, Two 1/4 Balanced TRS In
• Two XLR Main Out, Six 1/4 Mix Out
• 7 Capacitive Touchscreen Interface
• 16×18 USB-B Audio Interface
• 16×18 Multitrack Rec/Playback via SD
• Stereo USB Rec/Playback
• CQ-MixPad Control App
• 96 kHz FPGA Processor with Built-In FX
• AMM, Feedback, FX Assist Engines

Specifications

Mixer

Signal Processing

Digital Audio

Performance

Connectivity
