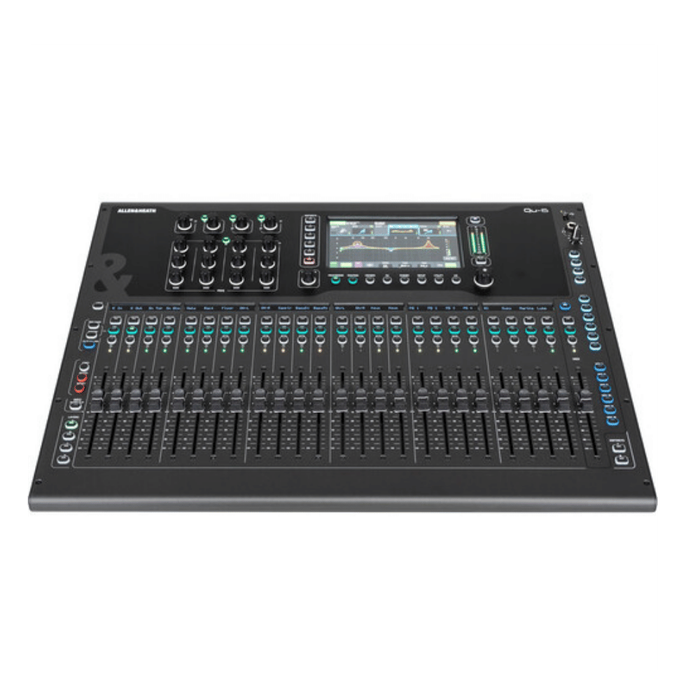

Allen & Heath: Qu-6

Next-Gen Mixing Power in a Compact Frame

The Allen & Heath Qu-6 is a next-generation 38-in/24-out digital mixer that blends the trusted Qu series design with cutting-edge technology and enhanced flexibility. Designed for live sound, studio and broadcast applications, the Qu-6 delivers pristine 96kHz audio, intuitive control, and powerful processing in a compact, road-ready format.

96kHz XCVI Core
At the heart of the Qu-6 is Allen & Heath's flagship XCVI FPGA engine, delivering ultra-low latency, high-resolution audio, and advanced DEEP processing capabilities for every input and output channel.

Expanded I/O
The Qu-6 offers 38 inputs and 24 outputs, including 24 XLR/Jack 'combi' mic/line inputs, 2 stereo line inputs, 16 XLR outputs, and AES3 digital output. It's built to handle complex routing and large channel counts with ease.

25 Motorised Faders & 7" Touchscreen
Featuring 25 smooth 100mm motorised faders and a vibrant 7-inch capacitive touchscreen, the Qu-6 provides hands-on control with four fully customizable layers and eight assignable SoftKeys for a personalised workflow.

Studio-Grade FX & Processing
Equipped with six studio-quality Multi-FX engines, each with dedicated returns, and DEEP processing tools including EQ, compression, gating, and delay, the Qu-6 ensures professional-grade sound shaping.

Flexible Recording Options
Record and playback up to 32 channels via USB-C or SD card, or use the USB-A port for stereo recording/playback. Ideal for capturing live performances or multitrack sessions without external gear.

Everything I/O & SLink Connectivity
The SLink port allows seamless integration with Allen & Heath's Everything I/O ecosystem and other A&H consoles, supporting up to 128×128 channels of 96kHz audio for scalable system expansion.

Main Features:

• Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
• 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
• Versatile Everything I/O connectivity ensures maximum flexibility and expandability
• Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
• Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
• 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
• 24 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
• 25 smooth 100mm motorised faders and a thoughtfully designed interface provide intuitive hands-on control
• USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
• Built to handle the demands of modern live sound production


Tech Specs:

• Type: Digital Mixer
• Channels: 38
• Inputs - Mic Preamps: 24 x XLR (mic/line)
• Phantom Power: 24 Channels
• Inputs - Other: 4 x 1/4" (2 Stereo In)
• Outputs - Main: 2 x XLR (left, right)
• Outputs - Direct: 14 x XLR
• Outputs - Other: 2 x 1/4" (alt)
• Outputs - Digital: 1 x XLR (AES/EBU)
• Talkback: 1 x XLR
• Data I/O: 1 x EtherCon (SLink), 1 x RJ45
• Headphones: 1 x 1/4"
• USB: 1 x USB-A, 1 x USB-C
• Computer Connectivity: USB-C (32x32)
• Remote: 1 x Footswitch
• Faders: 25 x 100m Motorised Faders

• A/D Resolution: 96kHz
• EQ Bands: 4-band parametric
• Features: 96kHz FPGA Core
• Screen: 7" Capacitive Touchscreen
• Storage: SD card slot
• Software: Remote control via free apps - Windows/MacOS/iOS/Android
• Rackmountable: Yes (kit sold separately)
• Power Source: IEC Main Connection with Worldwide PSU
• Dimensions (WxDxH): 609 x 476 x 213 mm
• Weight: 13.5 Kg
