Networked Power. Precision Mixing.

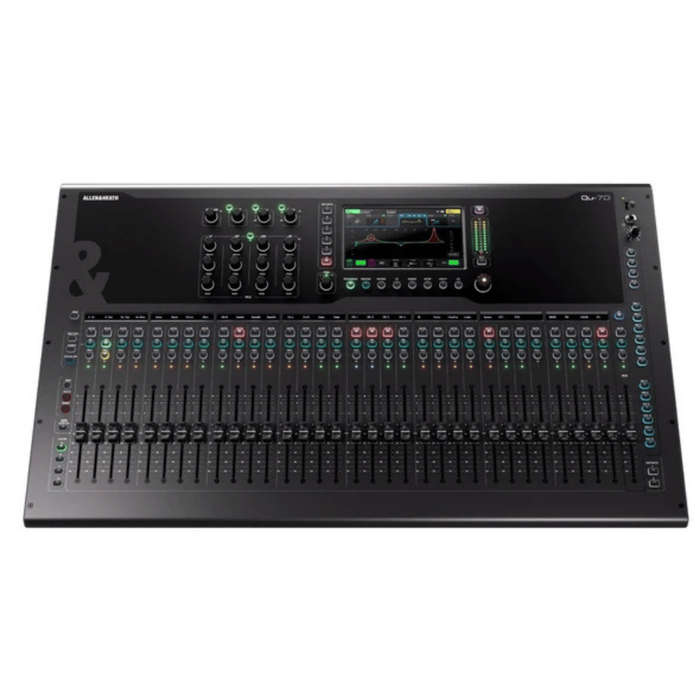

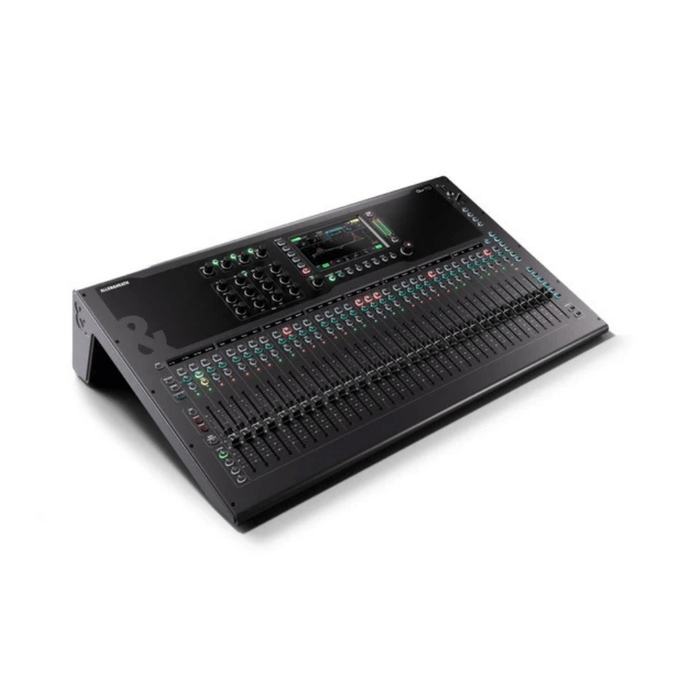

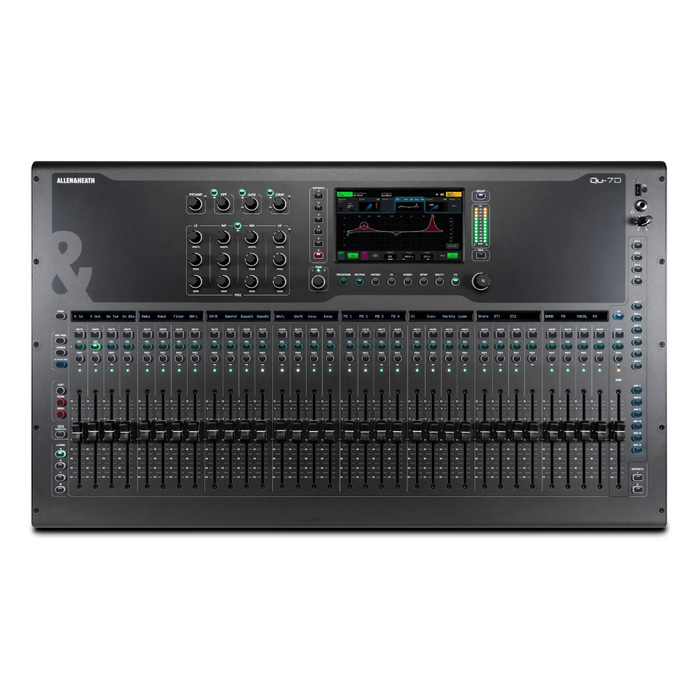

The Allen & Heath Qu-7D is a premium 38-in/24-out digital mixer that elevates the trusted Qu series with cutting-edge performance and built-in Dante networking. Engineered for high-demand live sound, studio, and broadcast applications, the Qu-7D delivers crystal-clear 96kHz audio, powerful DEEP processing, and a redesigned user interface—all packed into a sleek, tour-ready chassis.
96kHz XCVI Core Processing
At the heart of the Qu-7D is Allen & Heath's powerful XCVI FPGA engine, delivering ultra-low latency, high-resolution 96kHz audio, and DEEP processing on every input and output channel for uncompromising sound quality.
Integrated Dante Networking
The Qu-7D includes a built-in 16×16 Dante interface (48/96kHz) with a locking EtherCon port, enabling seamless integration into Dante-enabled systems for flexible, scalable digital audio routing.
Expanded I/O
Includes 32 XLR/Jack 'combi' mic/line inputs, 2 stereo line inputs, 20 XLR outputs, and AES3 digital output—ideal for complex routing and high-channel-count applications.
33 Motorised Faders & Enhanced UI
Features 33 smooth 100mm motorised faders and a vibrant 7" capacitive touchscreen. Each channel has a dedicated display with name/type and chromatic metering, plus 4 fully customizable layers and 8 assignable SoftKeys.
Studio-Grade FX & DEEP Processing
Equipped with 6 studio-quality Multi-FX engines, each with dedicated returns, and DEEP processing tools including EQ, compression, gating, and delay—embedded directly into the mixer's architecture.
Flexible Recording & Playback
Supports 32×32 USB-C multitrack recording, 32-channel SD card capture, and stereo USB-A playback—perfect for live capture, virtual soundchecks, or studio sessions.
Everything I/O & SLink Connectivity
The SLink port allows seamless integration with Allen & Heath's Everything I/O ecosystem and other A&H consoles, supporting up to 128×128 channels of 96kHz audio for scalable system expansion.
Main Features:
- Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
- 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
- Versatile Everything I/O connectivity ensures maximum flexibility and expandability
- 7" capacitive touchscreen offers easy access to channel strips, FX, and more
- Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
- 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
- 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
- 33 smooth 100mm motorised faders and a thoughtfully designed interface provide intuitive hands-on control
- USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
- 16-in/16-out Dante interface gives you seamless integration into AoIP networks
- Built to handle the demands of modern live sound production
Tech Specs:
- Digital Mixer
- 38
- 32 x XLR (mic/line)
- 32 Channels
- 4 x 1/4" (2 Stereo In)
- 2 x XLR (left, right)
- 18 x XLR
- 2 x 1/4" (alt)
- 1 x XLR (AES/EBU)
- 1 x XLR
- 1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
- 1 x 1/4"
- 1 x USB-A, 1 x USB-C
- USB-C (32x32)
- 1 x Footswitch
- 33 x 100m Motorised Faders
- 96kHz
- 4-band parametric
- 96kHz FPGA Core
- 7" Capacitive Touchscreen
- SD card slot
- Remote control via free apps - Windows/MacOS/iOS/Android
- Yes (kit sold separately)
- IEC Main Connection with Worldwide PSU
- Dimensions (WxDxH): 800 x 476 x 213 mm
- Weight: 16.7 Kg
- Discover more Allen & Heath Digital Mixers [Qu-7D]: https://www.allen-heath.com/hardware/qu/qu-7-qu-7d/
