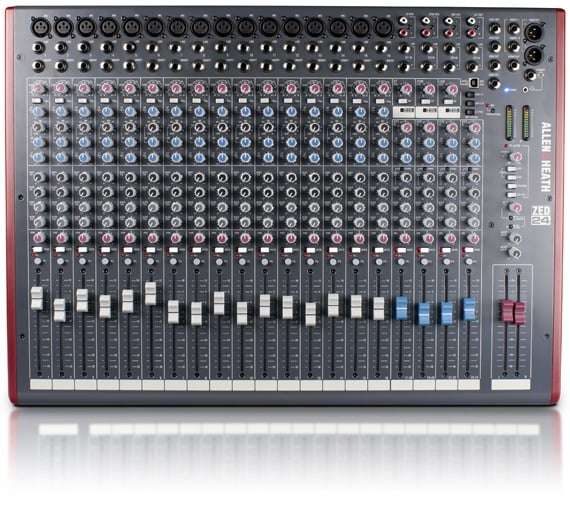

Allen & Heath ZED-2402

ZED-24 has an incredibly advanced feature-set for a mixer at this level — it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, ZED-24 is so packed full of great features that you'd think it would cost much, much more!

USB AUDIO FLEXIBILITY

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-

SEND OPTIONS

1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4

RETURN OPTIONS

1) To Stereo 3 channel

FEATURE SUMMARY

• 16 mono channels
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain 'DuoPre' mic line input
• 3 band EQ with MusiQ
• 4 auxes
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• 4 stereo channels with 2-band EQ and inputs for extra sources
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Mono/stereo function on auxes 1&2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
• Cakewalk SONAR LE bundled with mixer
