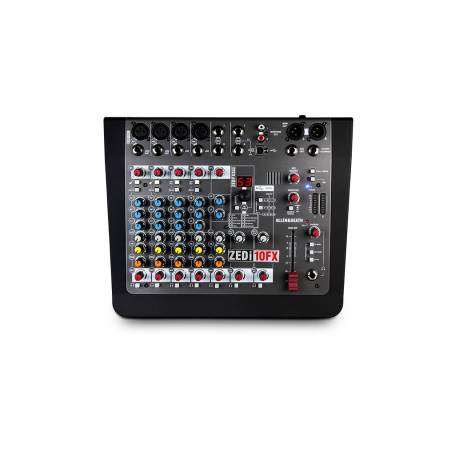

Allen & Heath ZEDi10FX - 10 Channel Analog Mixer w/ USB and FX

Allen & Heath ZEDi10FX

With excellent sound quality, built-in effects, and a built-in 4 x 4 USB audio interface, the Allen & Heath ZEDi-10FX is a smart mixer for small-format studio and stage applications. Connect four microphones or mono line-level signals, or even two instruments without the need for DI boxes. Two additional stereo channels are available for synthesizers, drum machines, and other line-level sources. Record and play back two channels of 24-bit/96kHz audio via USB without the need for a separate interface. Add reverbs, delays, and combinations of the two with built-in effects processing. Factor in its exceptional build quality, and the compact Allen & Heath ZEDi-10FX mixer stands out in its class.

Features

• 4 in, 4 out USB Audio Interface (24-bit/96kHz)
• Cubase LE Software included
• Cubasis LE App included
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Stereo Inputs with TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• Internal FX Engine with Tap Tempo
• Lo-cut filter for cleaning up unwanted low frequency noise
• 3 band EQ for easy creative and corrective tonal shaping
• Aux out for connecting a monitor speaker or in-ear / headphone monitoring
• 60mm smooth travel fader on main mix
• XLR main outputs
• Flexible signal monitoring
• 8 LED signal metering
• 48V Phantom Power for condenser mics
• Robust internal power supply

Technical Specs

• Type:  Analog mixer with USB interface
• Channels:  10
• Computer Connectivity:  USB (4 x 4)
• Faders:  1 x 60mm Main Mix fader
• Inputs - Mic Preamps:  4
• Phantom Power:  4
• Inputs - Line:  4 x 1/4" TRS (2 x instrument high impedance)
• Inputs - Other:  4 x 1/4" TRS (stereo paired)
• Outputs - Main:  2 x XLR (left, right), 2 x RCA (stereo)
• Outputs - Other:  1 x 1/4" (aux out), 1 x 1/4" (FX out/footswitch)
• Aux Sends:  1 x Aux send, 1 x FX send
• Headphones:  1 x 1/4"
• USB:  1 x Type B
• EQ Bands:  3-band EQ
• Effects:  24-bit Mulit-effects, 99 presets
• Software:  Cubase LE (included)
• Height:  3.8"
• Width:  13.1"
• Depth:  10.8"
• Weight:  4.85 lbs.
• Manufacturer Part Number:  AH-ZEDi10FX
