Product Description
This paint thickness meter Smart Accident Finder is designed to not-destructively measure the thickness of non-magnetic coatings (including paint, enamel, plastic, epoxy, etc.) on iron, steel or aluminum.
- Digital Mini Car Painting Thickness Tester Gauge 0~2.0mm
- Paint Thickness Meter
- Coating Thickness Gauge
- Smart Accident Finder
Specifications
Measuring range:0.0mm to 2.0mm,0mil to 80mil
Acciracy:2%rdg+-0.1mm , or 2%rdg+-4mil
Note:accuracy is guaranteed at the operating temperature of 23 Celsius ± 5 Celsius ,and relative humidity of not more than 75%.
Resolution:0.1mm/1mil
Power supply:3V button cell,CR2032 or equivalent, 1 piece. (NOT included If shipped by Express Courier, Will Include one for you if ship by Post)
Operation environment:
- Temperture:0 Celsius to 40 Celsius
- Relative humidity:<80%
Size:6.9*3.8*2cm
Weight: 23g
Operating Instruction
1. Hold the tester and make sure that it is as least 20cm away from the object
to be tested and other objects. Then press the "TEST" button to turn on the
tester."--"appear on the displayand flashed, meanwhile the unit "mm"appear.
2. Press the "UNIT"button to select desired unit - mm or mil.

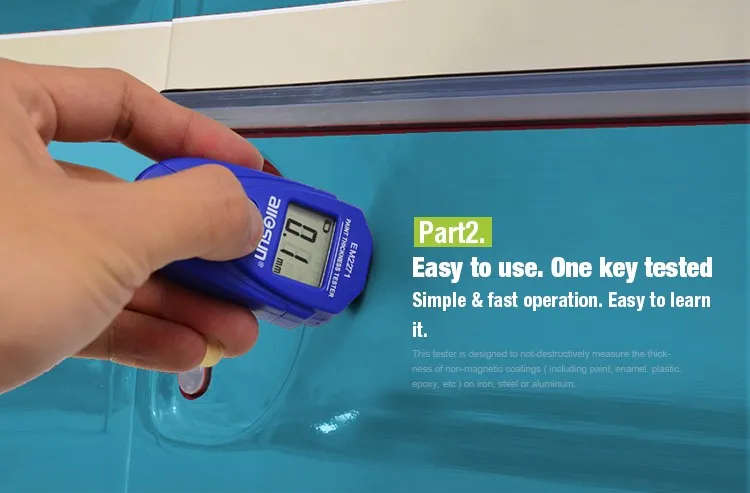

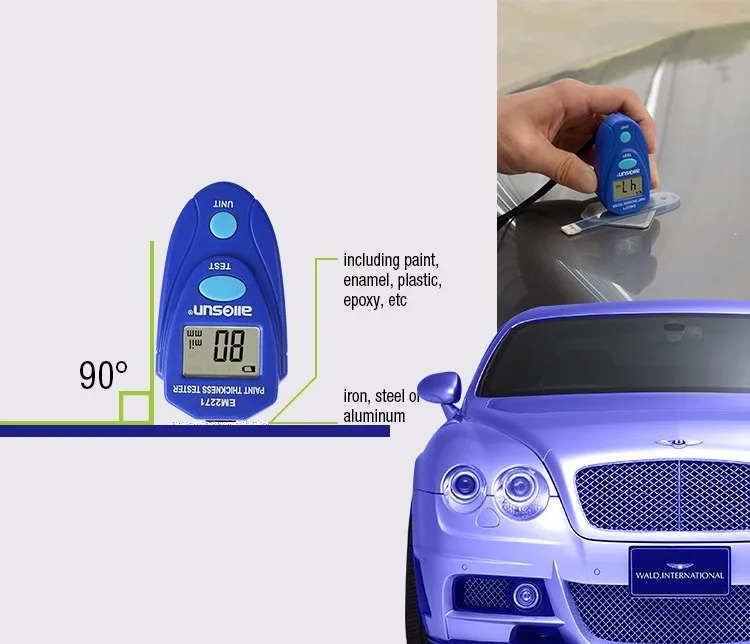

3. Place the tester's probe perpendicularly on the surface to be tested, the di-
splay will show the coating thickness.
*If the display shows"--",it means that the tester does not detect any iron, steel
or aluminum substrate.
*If the display shows"OL",it means that the coating thickness exceeds the tester's
measuring range.
*If the display shows"- 0",it means that the probe has wear or the substrate under
the coatings may be other kind of metal other than iron,steel or aluminum.
4. When you make measurement,the reading will remain on the display if you
move qucikly the tester away from the surface under test; and you can press
the "TEST"button to delete this reading,the display will show"--"
5. If you do not press any button and the tester does not detect the presence of
steel, iron or aluminum for about 30 seconds, the tester will turn off automatically.
If you want to turn off the tester manually,press and hold down the "TEST" button for more than about 1 second.
Package Contains:
1 x Paint Thickness Tester
