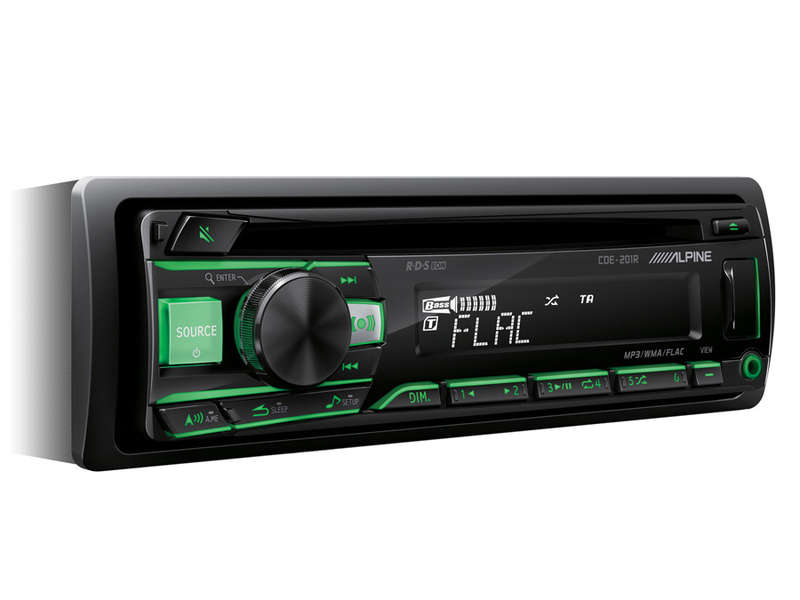

Alpine CDE-201R Mp3 Cd Front Loader with USB/Android
The CDE-201R is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Connect your Android phone to enjoy all your stored audio content, stream Spotify or internet radio, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.
Connect Your Android Phone
If you have an Android based phone or tablet, you can connect it via USB (cable not included) to your Alpine head unit to enjoy the audio content through your car speakers. You can select songs on your phone/ tablet or using the rotary encoder of your head unit. This feature is available for all Alpine head units with Android Open Accessory 2.0 (including CDE-201R).
Connect USB Sticks
The front USB port of the CDE-201R is ready for USB sticks. Bring your music along on your USB stick and enjoy MP3, WMA and FLAC files with convenient search functions.
Playback FLAC Files
FLAC high quality audio compression is becoming more and more popular, as it provides a much better sound quality compared to regular MP3 files. This Alpine product can playback FLAC files stored on USB media devices.
Tune Your Sound
Adjust the sound of your Alpine head unit to your personal preference, using Bass Engine SQ to get awesome bass output, as well as the EQ functions (10 Pre-Sets or 3 band Parametric EQ. Connect external amplifiers to the 2 PreOuts (2 Volts) or simply enjoy a direct speaker connection with the built-in 4 x 50 Watts high quality amplifier.
Set Your Colour Scheme
You can switch the button illumination between green and red at the touch of a button.
Specifications
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 - 108.0 MHz
MW Tuner
Tuning Range: 531 - 1,602 kHz
LW Tuner
Tuning Range: 153 - 279 kHz
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 500 mA
File System: FAT 16/32
Sound Tuning
Subwoofer Level Adjustment: 0 to 15 dB
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 80/100/120 Hz
Low Pass Filter: Off, 80/100/120 Hz
Bass Level Control Range: ±7 dB at 100Hz
Bass Center Frequency: 60/80/100/120 Hz
Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
Treble Level Control Range: ±7 dB at 10 kHz
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
Mid Level Control Range: ±7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
