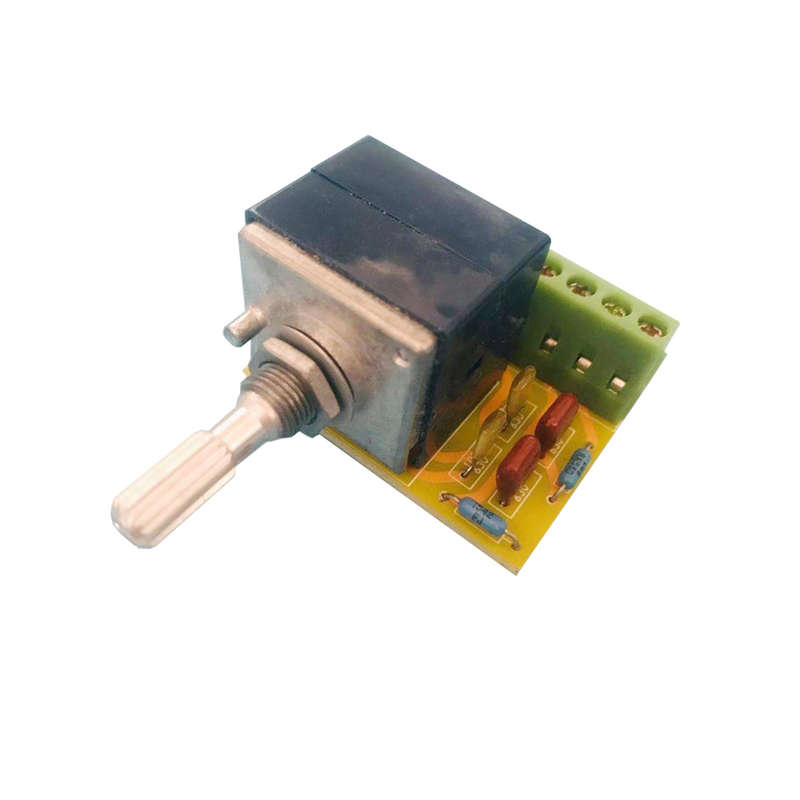

ALPS 27 Type 100K Isophonic Volume Potentiometer Loudness Volume Controller

Description:
1. This item is a finished board, The board colors are green and blue, shipped randomly.ALPS blue shell 27 type 8pin 100K RC equal loudness volume potentiometer circuit board: RC equal loudness control circuit, refers to the equal loudness control circuit composed of R (resistance) and C (capacitor) components and volume potentiometer, the line is simple, The effect is good. It is the most commonly used equal loudness control circuit in the audio. It is equipped with RC components on the volume potentiometer. 2. Used for volume and equal loudness control, it can increase the high frequency and low frequency volume at a small volume, so that the low, medium and high parts of the loudness ratio remain the same as the loudness ratio at small, medium and large volume. 3. Two channels, board size 44 35mm. Exquisite FR4 double-sided gold-plated fiberglass board, can be equipped with Japanese ALPS blue shell 27 type 100K volume potentiometer, 4 capacitors, 2 resistors, 4 2-bit terminals. 4. It is convenient to label the input, output, and ground (two ground lines, two input lines, and two output lines).
NOTE:
1. Due to different production batches, The components on the board parameters are not the same, to board the components of the assembly parameters prevail! However, we will try our best to use brand capacitors to ensure product quality. 2. With this matching adapter circuit board, the potentiometer soldering feet are firmly positioned, the soldering assembly becomes simple and easy, and the expensive potentiometer is protected.
Package Included:
1 x ALPS 27 Type 100K Isophonic Volume Potentiometer
