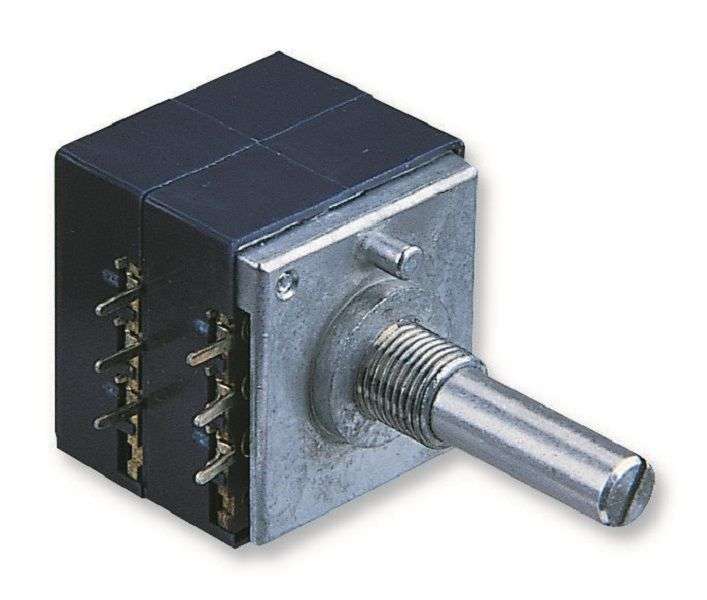

Alps Alpine (STRK27102) Rotary Potentiometer, 20 kohm, 1 Turns

Rotary Potentiometer, 20 kohm, 1 Turns, Log (Audio), 50 mW, ± 20%, RK27Product InformationTrack Resistance: 20kohmNo. of Turns: 1TurnsTrack Taper: Log (Audio)Power Rating: 50mWResistance Tolerance: ± 20%Product Range: RK27Potentiometer Mounting: Panel MountShaft Diameter: 6mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 20mmResistor Technology: Metal FoilProduct OverviewThe RK271 series from Alps are 27mm size rotary potentiometers. Thesepotentiometers are available in metal shaft and screw clamp bushing combination.Single/dual/quad unit resistor elementFlat and slotted type shafts availableLength of the shaft varies from 15mm to 30mmWith or without center detent option availableTotal resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 250KohmTotal resistance tolerance of ±20%Horizontal type mountingOperating temperature range -10°C to 70°CTotal rotational angle of 300°and 15A, 3B resistance taper availableOperating life of 15,000 cycles and maximum power rating up to 0.05W
