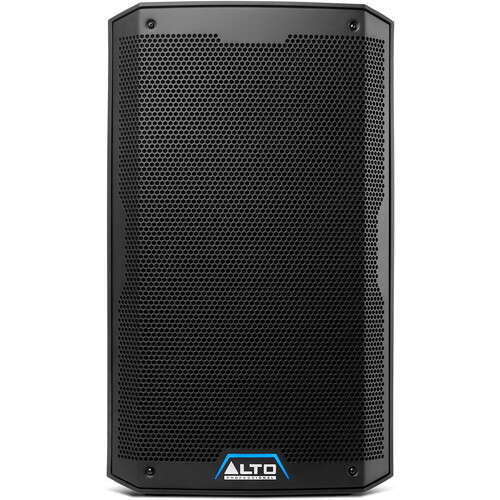

Compact, lightweight, and designed for reliability, the TS410 2000W Active Loudspeaker from Alto Professional is a versatile 2-way loudspeaker that delivers potent, room-filling sound for nearly any application. Bluetooth compatibility allows you to stream your audio wirelessly or connect a second loudspeaker for a completely cable-free stereo setup.

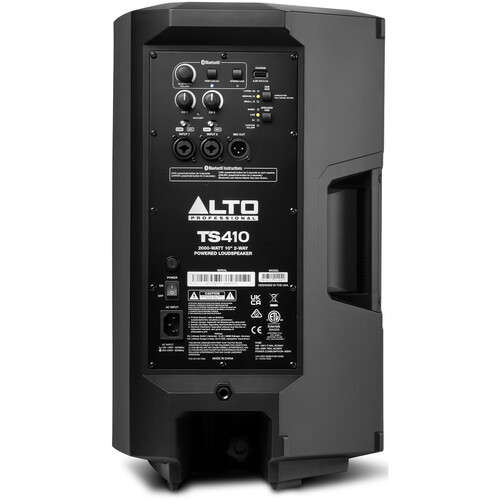

The TS410 features two combo XLR-1/4" balanced inputs with an XLR output for your final mix or for linking directly to a second loudspeaker. An onboard mixer makes dialing in the perfect performance a cinch, but further options are provided by the free Alto App to remotely adjust any settings, including custom 5-band EQ presets and three DSP speaker modes, with instant recall ability. The loudspeaker even comes with flexible mounting options for meeting any application demands, whether they require freestanding placement, wedge monitor use, pole socket mounting, or even flown rigging.
Configuration | Active 2-Way |
Enclosure Type | Loudspeaker |
Total Power Capacity | 2000 W Peak |
Amplifier Power Rating | LF: 1 x 1300 W Peak (at 2 Ohms) HF: 1 x 700 W Peak (at 4 Ohms) |
Amplifier Class | HF/LF: Class-D |
System Impedance | 1 x 6 Ohms (Bi-Amp) |
Drivers
HF Driver | 1 x 1" / 2.5 cm Ceramic Compression Driver |
HF Voice Coil | 1.4" / 3.6 cm |
MF Driver | None |
LF Driver | 1 x 10" / 25.4 cm Woofer |
LF Voice Coil | 2" / 5.1 cm |
Performance
Frequency Range | 48 Hz to 20 kHz -10 dB |
Frequency Response | 57 Hz to 20 kHz ±3 dB |
Maximum SPL | 130 dB (Peak) 127 dB (Continuous) |
Coverage Angle | 90° H x 60° V |
Gain Range | Line Input: to +10 dB Mic Input: to +50 dB |
I/O Impedance | 1/4" Line Input: 10 Kilohms (Balanced) 20 Kilohms (Unbalanced) XLR Mic Input: 1.2 Kilohms (Balanced) |
Protections | Signal Limiter, Thermal, Transducer Overdrive |
Connectivity
Audio I/O | 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x XLR 3-Pin Male Balanced Link/Mix Output |
Network I/O | None |
USB | 1 x USB-A (2.0, Device Charging) |
Wireless Connectivity | Bluetooth |
Signal Processing
Crossover | 2 kHz |
EQ | 1 x 5-Band Graphic |
Parametric EQ | Yes |
Semi-Parametric EQ | None |
Filters | 1 x High-Pass |
Dynamic Processing | Peak Limiter |
Alignment Delay | None |
Phase Adjustment | None |
Digital Signal Processing | Voicing Modes (Adjustable via Optional Software) |
