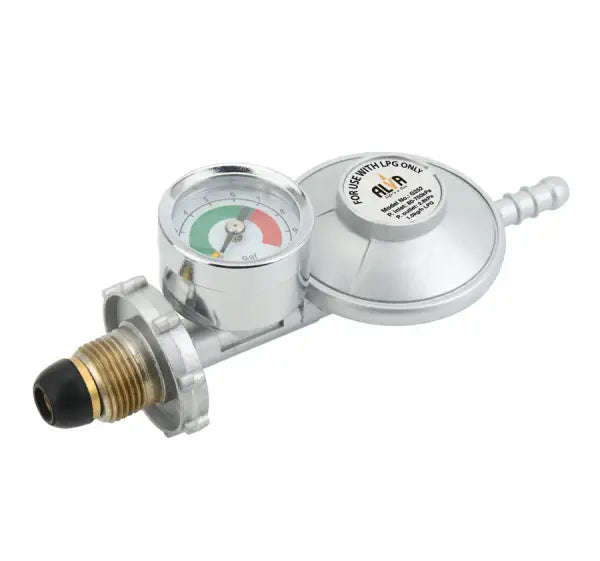

Alva Bullnose Gas Regulator With Pressure Gauge

We make our Alva Accessories to enhance your Alva experience
Your world is better with Alva

5/8"BSP Left hand thread
Low pressure regulator
12 Month warranty

Type: Single stage regulator for LPG with built-in pressure gauge
Cylinder Size (Recommended): 9kg - 48kg 5/8" BSP left hand thread
Operating Pressure: 700kPa @ 2.8kPa output
Gas Delivery Capacity: 1.0kg/h

Item Dimensions: 17 (L) x 6.5 (W) x 6.5 cm (H)
Item Weight: 260g
Approved in accordance with: SANS 1237
Packaged Weight: 290g
Packaged Dimensions: 17.5 x 7 x 7cm

HOW THE GAUGE OPERATES
Gauge works automatically once the cylinder is opened. When the valve is closed, the gauge returns to the O position once all the excess gas in the hose is depleted.
In cooler environments, the pressure inside the cylinder will lessen slightly, this will have a small effect on the reading of the gauge - This is normal.
The gauge only works when the cylinder valve is open.
The gauge doesn't need to be reset, the gauge returns to 0 when the gas supply has been shut off.
When the needle approaches the YELLOW bar, this indicates that the cylinder is running out of gas. Refilling the cylinder is advisable.

1 x Bullnose regulator
