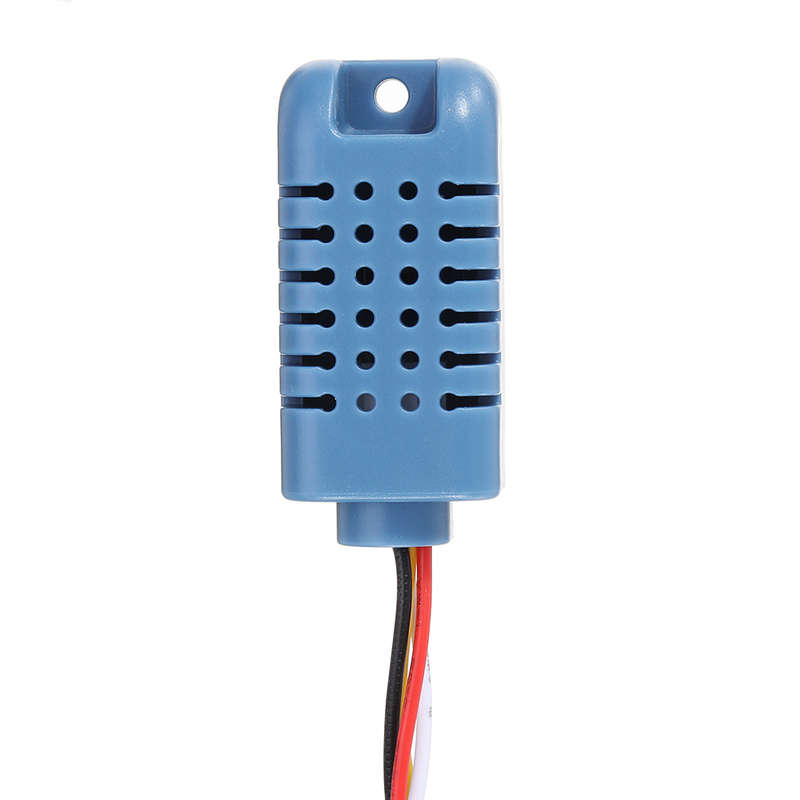

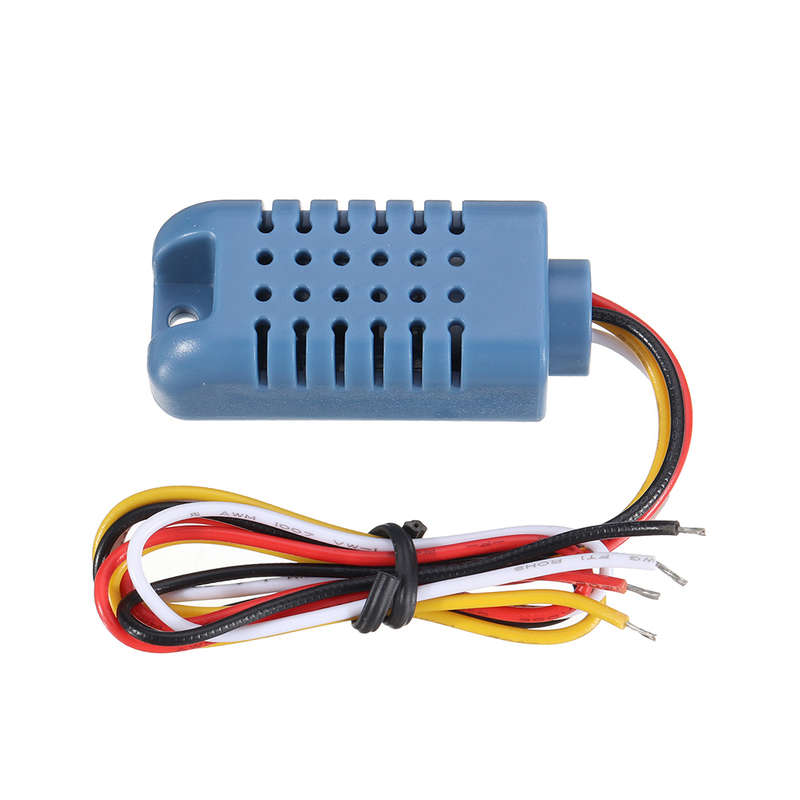

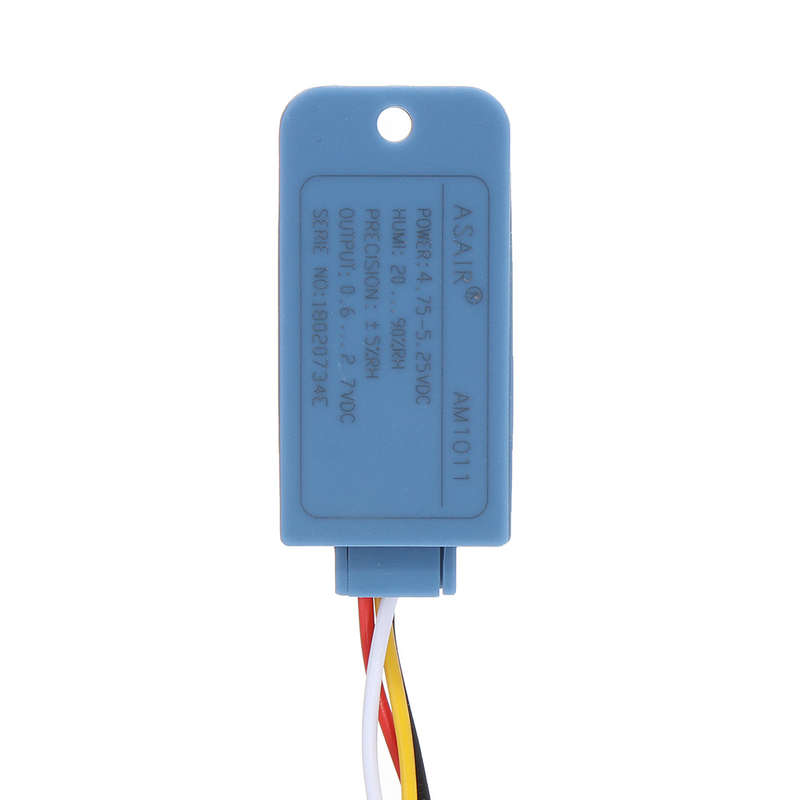

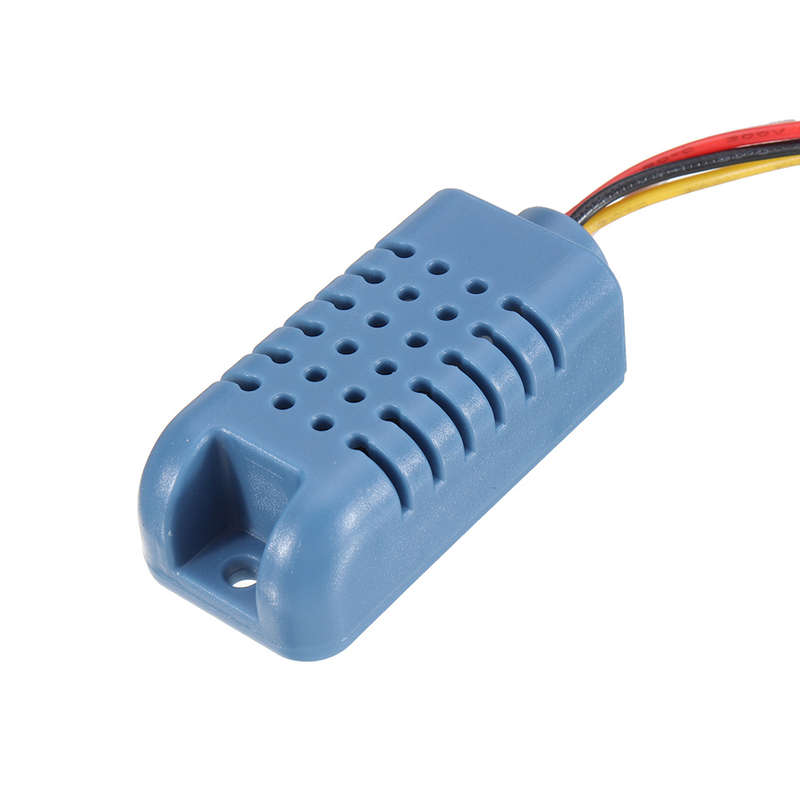

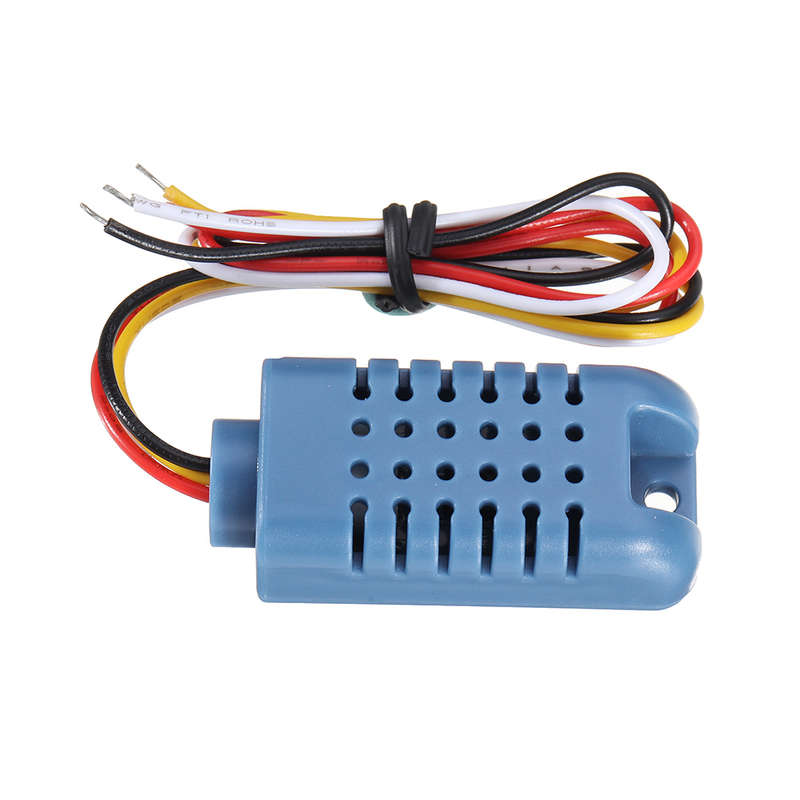

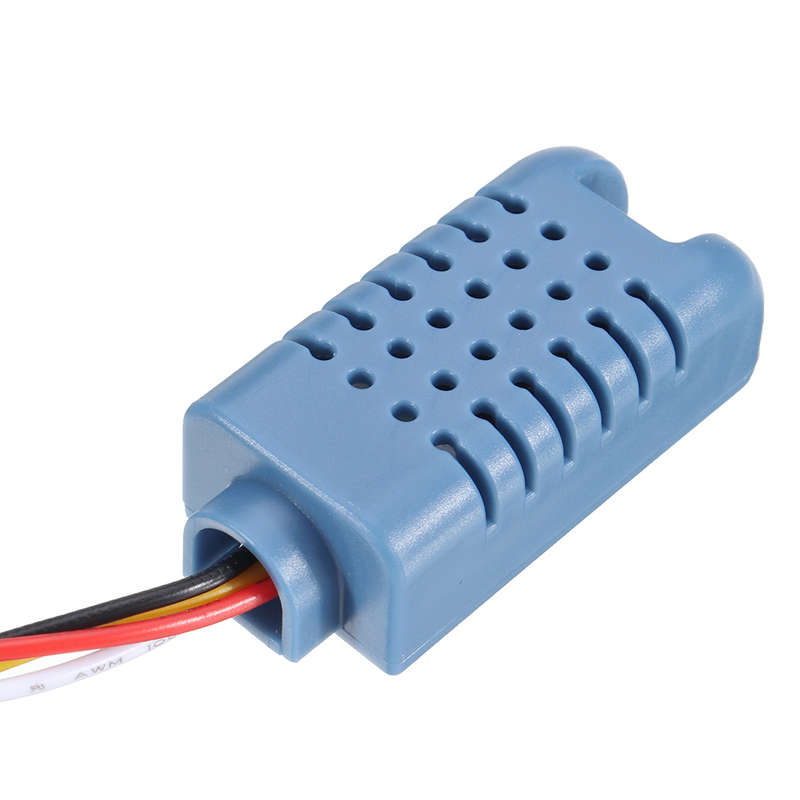

AM1011 Temperature and Humidity Sensor Humidity Sensitive Capacitor Module Analog Voltage Signal Out

20 available / new

R421.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641116762

Overview: AM1011 is a humidity sensitive capacitive temperature and humidity sensor. The sensor signal adopts analog voltage output mode. This module has high precision, high reliability, good consistency, and temperature compensation to ensure long-term stability, easy to use and low price. Features, especially suitable for enterprises with strict quality and cost requirements. Application: HVAC, humidifier, dehumidifier, communication, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications. Highlights: Low power consumption, small size, temperature compensation, single-chip calibration linear output, easy to use, low cost, fully interchangeable, long signal transmission distance, accurate calibration.

Feature:

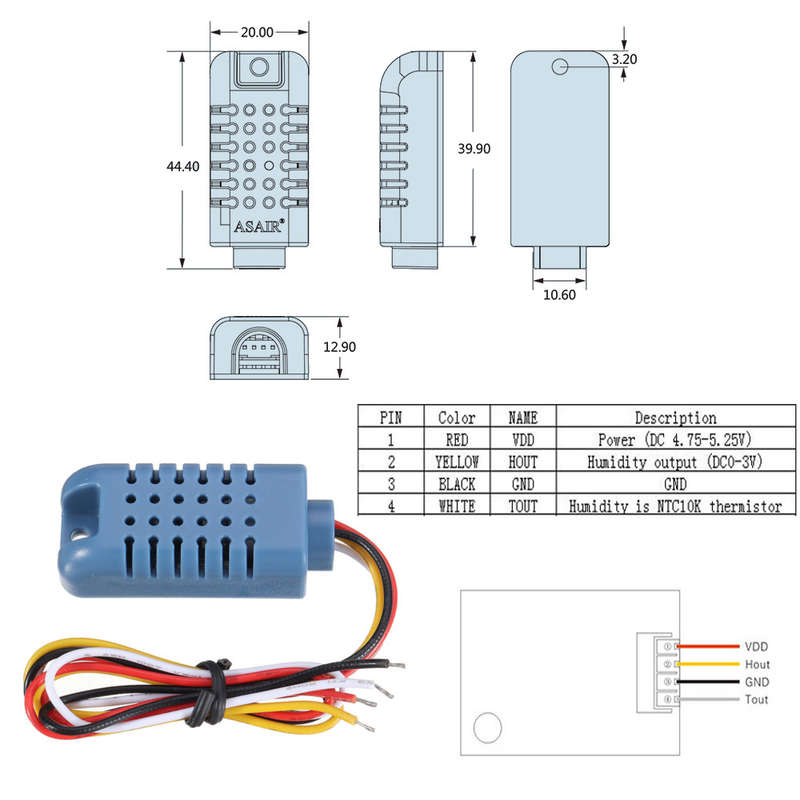

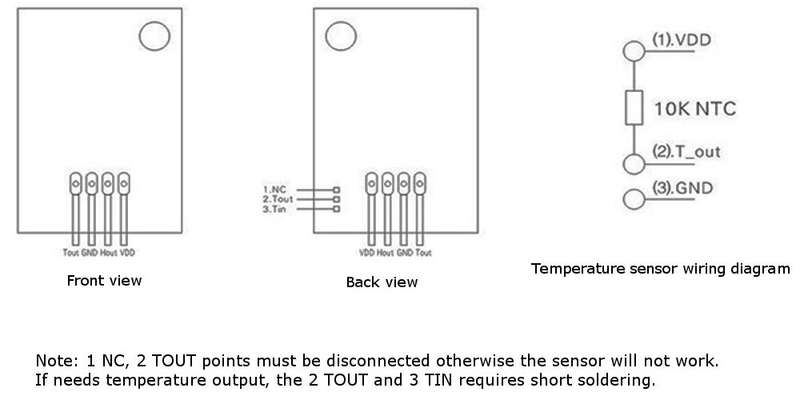

Model: AM1011 Signal: 0-3V analog voltage signal Voltage: DC4.75-5.25V Humidity range: 5%-95%RH Temperature accuracy: +-0.5 ﾣC Humidity accuracy: +-5%RH (30-80% RH) Attenuation value: temperature: <0.1 ﾣC / year, humidity: <1% RH / year Response time: temperature: 5s, humidity: 10s 1 / e (63%) Temperature range: 0~+60ﾣC Housing material: ABS plastic Weight: 13.5g Temperature output: 10KNTC
Package includes:

1 x Sensor
