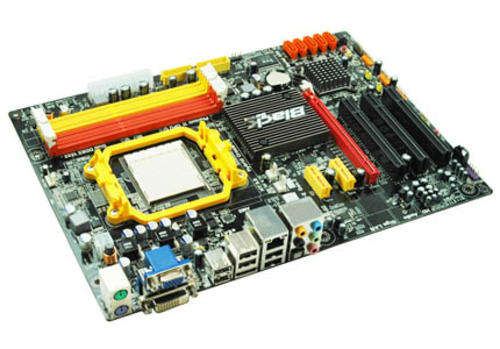

AMD AM3 ECS A880GMAD3 Motherboard

ECS ATX Black series A880GM-AD3

The A880GM-AD3 is ECS Black Series platform based on the best combination of AMD 880G and SB710 chipsets plus supports for the latest Phenom II Six core processors with Hyper Transport 3.0 technology links. It features 4 DDR3 DIMM slot carrying up to 32GB* of DDR3 1600(OC) memory. The A880GXM-AD3 integrated Graphics Processing Unit (IGP) provide the AMD Hybrid CrossFire Technology, also features UVD2.0, DirectX 10.1, PCI Express 2.0 and HDCP for the extreme graphic performance computing. The ECS A880GM-AD3 is the best reliable choice for AMD AM3 platform.CPU    Socket AM3 socket for AMD Phenom™ II processors
  Support 95W Phenom™ II X6 processors
  High-performance HyperTransport 3.0 CPU Interface
  Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.


  CHIPSET    AMD® 880G & AMD® SB710
  North Bridge: AMD® 880G
  South Bridge: AMD® SB710

  GRAPHICS    On Chip(AMD 880G-based with ATI™ Radeon HD4250 graphics )
  Integrated DirectX10.1 graphics processor
  Share Memory: Maximum up to 512MB

  MEMORY    Dual-channel DDR3 memory architecture
  4 x 240-pin DDR3 DIMM socket support up to 32 GB
  Support DDR3 1600/1333/1066/800 DDRIII SDRAM
  *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 16GB)
  * Please refer to the QVL memory for supporting DDR2 1066


  EXPANSION SLOT    1 x PCI Express x16 Gen2.0 slot
  2 x PCI Express x1 slots
  3 x PCI slots

  STORAGE    Support by AMD® SB710
   5 x Serial ATA 3.0Gb/s devices
   1 x eSATA
   RAID0, RAID1, RAID10 configuration

  AUDIO    Realtek ALC 888S supports 8-channel HD audio
  Compliant with HD audio specification
