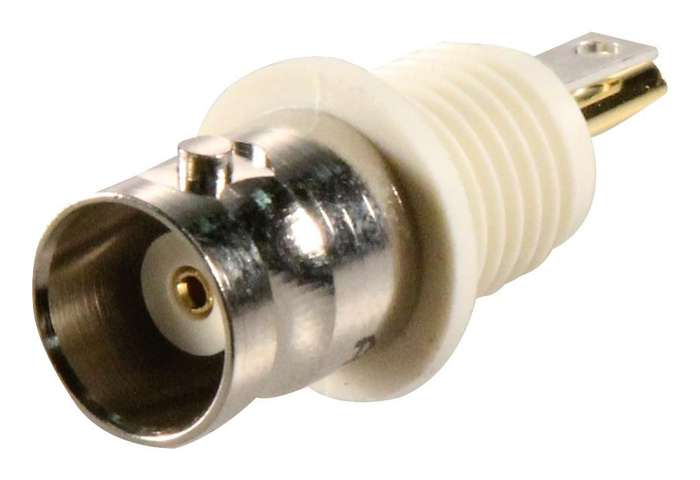

Amphenol (031-10-RFXG1) RF / Coaxial Connector, BNC Coaxial

RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohmProduct OverviewThe 031-10-RFXG1 is an isolated RF Connector, BNC series, BNC straight Jack withgold-plated phosphor bronze contacts and solder contact termination. Body madeup of brass with nickel-plated finish and nylon insulator. The BNC is a bayonetstyle connector allowing for quick connect and disconnect with a positivelocking mechanism. Mating is achieved with just a quarter turn of the couplingnut. The 50ohm BNC connector is miniature and lightweight units. Designed toaccommodate a large variety of RG and industry standard cables.Standard polarity5000MR Minimum insulation resistance500 Mating cyclesBulkhead-front mount-85 to 165°C M201Temperature rangeApplicationsRF Communications, Communications & Networking, Automotive, Computers & ComputerPeripherals, Medical, Sensing & InstrumentationProduct InformationConnector Type: BNC CoaxialConnector Body Style: Straight Bulkhead JackCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: RG58, RG59, RG179, RG316Contact Material: Phosphor BronzeContact Plating: Gold Plated ContactsFrequency Max: 4GHzConnector Mounting: Panel MountProduct Range: -
