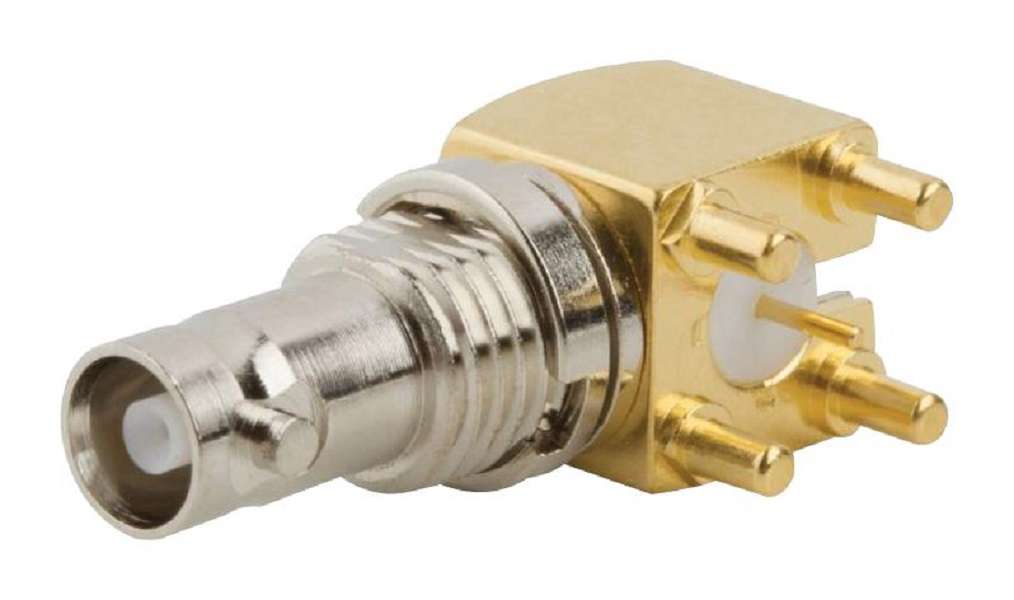

Amphenol (034-1030-12G) RF / Coaxial Connector, HD BNC Coaxial, 75 ohm

RF / Coaxial Connector, HD BNC Coaxial, Right Angle Bulkhead Jack, Through HoleRight Angle, 75 ohmProduct OverviewThe 034-1030-12G from Amphenol RF is a HD BNC PC Through Hole Mount Right-AngleBulkhead Jack for 1.58mm (0.062") PCB thickness and 3mm (0.118") max. panelthickness. This 75-ohm high-definition PCB connector is designed for 12G-SDIvideo applications and provides a crystal clear signal transmission on a singlechannel.12 Gb/s performance per SMPTE standardOne channel for 4K or Ultra-HD qualityFamiliar BNC 2-stud bayonet coupling mechanismNickel-plated front body, cap and spanner nutGold-plated brass rear bodyGold-plated phosphor bronze contactImpedance is 75 ohmFrequency range is DC-18GHzMin. dielectric withstanding voltage is 1000VrmsTemperature range from -65°C to +165°CApplicationsBroadcast, Digital Signage, HD Cameras, Mobile Broadcast, Patch Panels, RemoteViewing, Video EncodersProduct InformationConnector Type: HD BNC CoaxialConnector Body Style: Right Angle Bulkhead JackCoaxial Termination: Through Hole Right AngleImpedance: 75ohmCoaxial Cable Types: -Contact Material: BrassContact Plating: Gold Plated ContactsFrequency Max: 18GHzConnector Mounting: PCB MountProduct Range: 12G SDI Series
