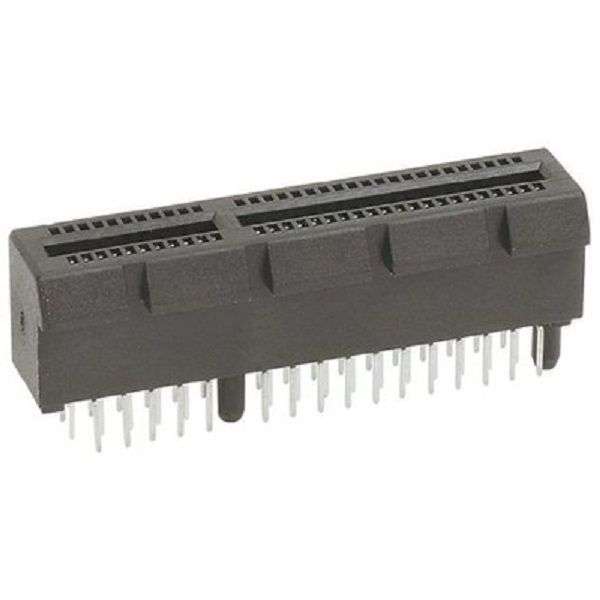

Amphenol (10018783-11111TLF) Card Edge Connector, PCI, Dual Side, 1.57 mm

Card Edge Connector, PCI, Dual Side, 1.57 mm, 64 Contacts, Through Hole Mount,Straight, SolderProduct OverviewThe 10018783-11111TLF is a 64-way 2-row PCI Express Card Edge Female Connector,2mm row pitch and solder termination. Copper alloy contacts with gold overnickel finish. This 1.0mm pitch, vertical card edge connector is used toimplement PCI Express® architecture in desktop PCs, workstations and servers.The base connector family offers one to 16 high-speed serial PCI Express Lanes.Each serial lane supports 2.5Gbps (per direction) in a 100R Gen1 system or5.0Gbps in a Gen2 system with an 85R differential environment. Base connectorrange offers 1, 4, 8 or 16 serial PCI Express links to scale to differentbandwidth requirements.High-temperature thermoplastic (UL94V-0) for reflow or thermoplastic (UL94V-0)for wave solderingApplicationsComputers & Computer Peripherals, IndustrialProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 64ContactsCard Thickness: 1.57mmNo. of Contacts: 64 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Through Hole MountPitch Spacing: 1mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: 15µ" Gold Plated ContactsRow Pitch: 2mmConnector Body Material: Nylon (Polyamide) BodyContact Plating: Gold Plated ContactsProduct Range: FCI 10018783
