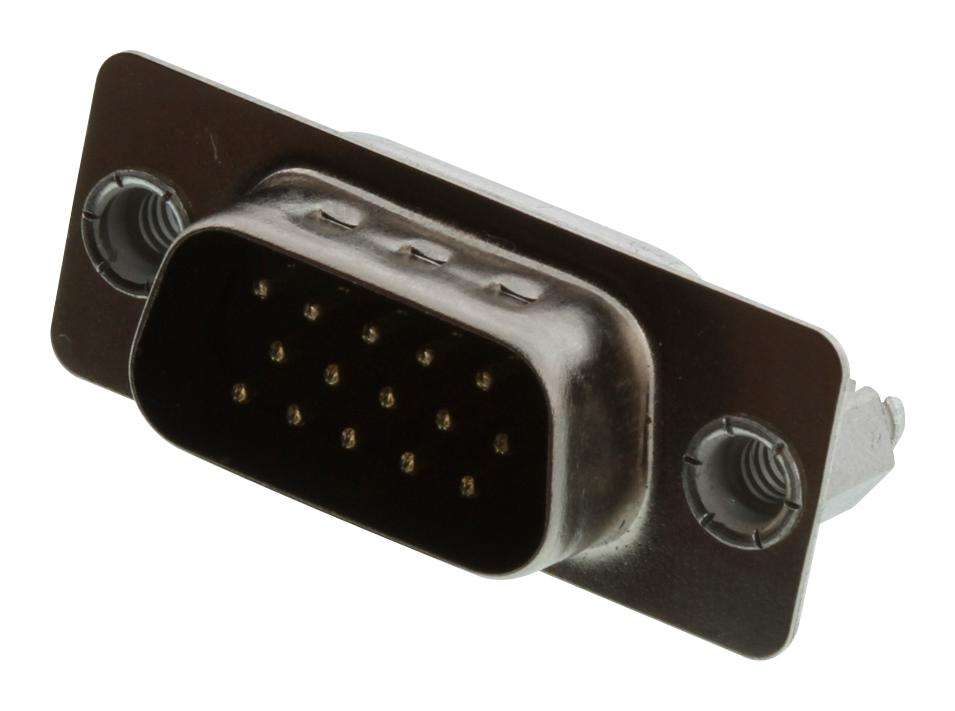

Amphenol (10090928-P154XLF) D Sub Connector, HD15, Standard,, 15 Contacts

D Sub Connector, HD15, Standard, Plug, FCI 10090928, 15 Contacts, DA, SolderProduct OverviewThe High density series High Density D-sub Miniature Straight Connectors withpin and socket. It has copper alloy contact with glass filled thermoplasticinsulator and SPCC steel shell. It provides customers access to a wide range ofindustry standard and application specific I/O interconnect solutions,high-density and high-speed interfaces to enable interconnect technologies fornetworking, storage and memory and complementary products for powerdistribution. The range of standardized I/O solutions enables full compliance toindustry standards, such as Ethernet, SFF, Infiniband, USB, PCMCIA or HDMI.Positions 15, 26, 44, 62 and 78Available in 200, 500 mating cyclesUL94V-0 Flammability5000MR at 500VDC Insulation resistance (minimum)25mR Contact resistance (maximum)2.5A Current rating-55 to 105°C Temperature rangeApplicationsCommunications & Networking, Computers & Computer Peripherals, Industrial, PowerManagementProduct InformationD Sub Connector Type: StandardNo. of Contacts: 15ContactsGender: Plug (View Associated Connectors)Product Range: FCI 10090928D Sub Shell Size: DAContact Termination Type: SolderConnector Mounting: Through Hole MountContact Material: Copper AlloyContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
