Amphenol (112516) RF / Coaxial Connector, BNC Coaxial, 50 ohm

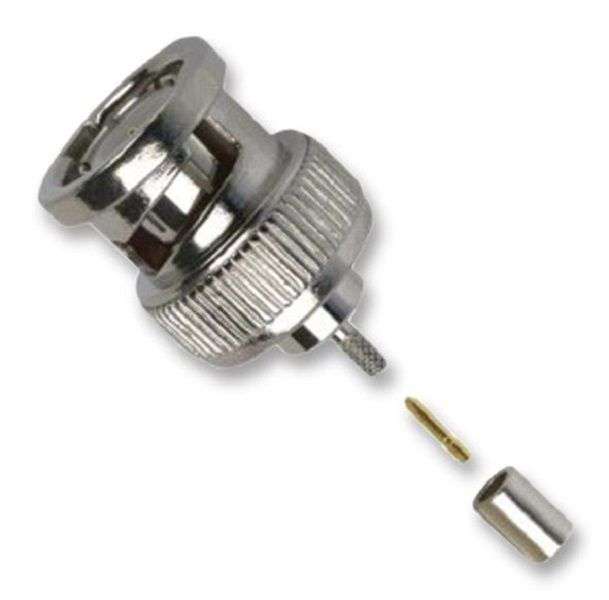

RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG178, RG196,Phosphor BronzeProduct OverviewThe 112516 is a straight crimp BNC Plug with gold-plated phosphor bronzecontacts. The connector is made of brass with nickel-plated finish and a Delrininsulator. The BNC is a bayonet style connector allowing for quick connect anddisconnect with a positive locking mechanism. Mating is achieved with just aquarter turn of the coupling nut. The 50R BNC connector is miniature andlightweight units. Designed to accommodate a large variety of RG and industrystandard cables. This RF connector is designed for M17/93-RG178, RG-178,RG-178A, RG-178B, RG-196 and RG-196A cable.Standard polarity5000MR Minimum insulation resistance500 Mating cycles-40 to +85°C Temperature rangeApplicationsRF Communications, Communications & Networking, Automotive, Computers & ComputerPeripherals, Medical, Sensing & InstrumentationProduct InformationConnector Type: BNC CoaxialConnector Body Style: Straight PlugCoaxial Termination: CrimpImpedance: 50ohmCoaxial Cable Types: RG178, RG196Contact Material: Phosphor BronzeContact Plating: Gold Plated ContactsFrequency Max: 4GHzConnector Mounting: Cable MountProduct Range: -
