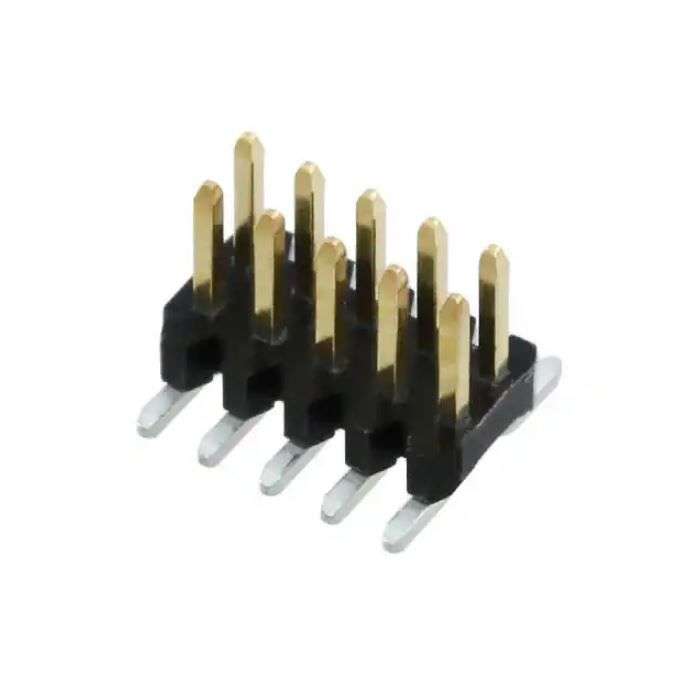

Amphenol (20021121-00010C4LF) Pin Header, Board-to-Board, 1.27 mm, 2 Rows

Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount RightAngleProduct OverviewThe 20021121-00010C4LF is a 10-way 2-row SMT Unshrouded Header with black hightemperature thermoplastic (UL94-V0) housing, copper alloy terminal, standard,3.05mm mating length, 0.25µm Au minimum at contact, 1.27µm minimum matte tin attail, without post. The housing with withstand exposure to 260°C peaktemperature for 10 seconds in a convection infrared or vapor phase reflow oven.Halogen-free1A Contact rating30mR Maximum contact resistance1000MR Minimum insulation resistance100 mating cycles125VAC Voltage ratingUL approvedHigh temperature thermoplastic black colour insulatorCopper alloy contacts with gold platingTemperature range from -55°C to 125°CApplicationsIndustrial, Medical, Communications & Networking, Test & Measurement, ConsumerElectronics, Sensing & Instrumentation, AutomotiveProduct InformationConnector Systems: Board-to-BoardPitch Spacing: 1.27mmNo. of Rows: 2RowsNo. of Contacts: 10ContactsContact Termination Type: Surface Mount Right AngleProduct Range: FCI Minitek127 20021121Connector Shroud: UnshroudedContact Material: Copper AlloyContact Plating: Gold Plated Contacts
