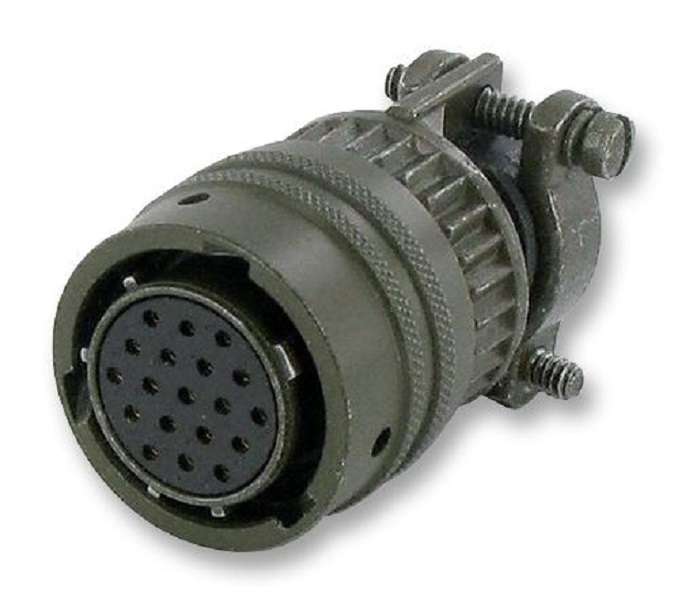

Amphenol (451 06EC 1626S 50) Circular Connector, 26 Contacts, Solder Socket

Circular Connector, 451, Straight Plug, 26 Contacts, Solder Socket, Bayonet,16-26Product OverviewThe 451 06EC 1626S 50 from Amphenol is 451 series, MIL-DTL-26482 series Iequivalent straight plug with 26 contacts. The 451 series miniature cylindricalconnectors offer high density contact arrangements in a circular shell with saltspray exposure of 48hour, 500hour. These connectors have 5 key/keywaypolarization with 3 point bayonet lock coupling for positive mating with nochance of cross plugging. Spring tension provided by a wave washer in thecoupling nut ensures maintenance of interfacial seal between mating halves. Boththe insert and main joint gasket are moulded from resilient neoprene insulator.These connectors are designed for harsh environments and have well-provenelectrical capability to withstand extreme shock, exposure and vibration. Thehigh reliability performance makes 451 series ideal for environmental sealing orpressurized applications.Quick disconnect bayonet coupling for rapid mating and unmatingIntermateable, intermountable and interchangeable with all MIL-DTL-26482connectors500 mating cyclesOperating temperature range from -55°C to +125°CInsulation resistance is 5000Mohm at 25?CAluminium alloy body material with olive drab chromate over cadmium platingCopper alloy solder socket contacts with gold platingApplicationsIndustrial, CommercialProduct InformationProduct Range: 451Circular Connector Shell Style: Straight PlugNo. of Contacts: 26ContactsCircular Contact Type: Solder SocketCoupling Style: BayonetInsert Arrangement: 16-26Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Copper AlloyContact Plating: GoldInsert Rotation: NService Class: Environmentally SealedEquivalent Military Specification: MIL-DTL-26482 Series I
