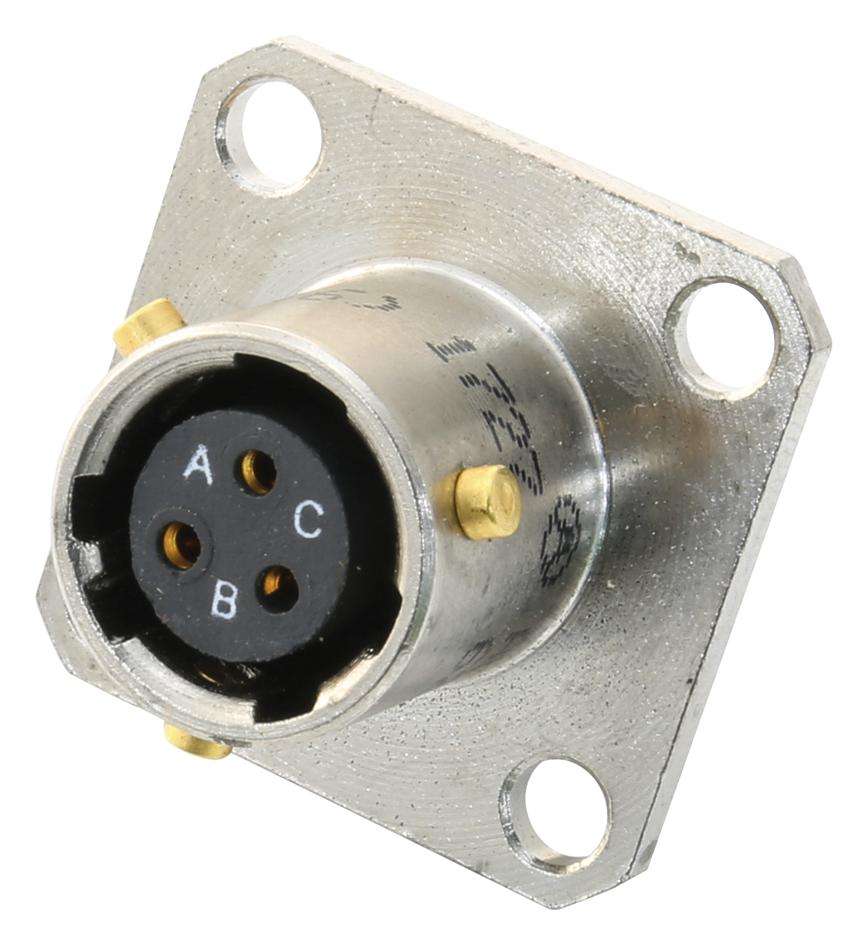

Amphenol (62GB-12E08-33SN(416))

Circular Connector, 62GB, Box Mount Receptacle, 3 Contacts, Solder Socket,Bayonet, 8-33Product OverviewThe 62GB-12E08-33SN(416) from Amphenol is 62GB series, MIL-DTL-26482 seriesequivalent box mount receptacle with 3 contacts. The 62GB series miniaturebayonet lock connectors are designed for harsh environments. These connectorshave well-proven electrical capability to withstand extreme shock, exposure andvibration. The 62GB series connectors have advantage of key way orientation toreduce mis-mating among multiple connectors. Complete moisture sealing isachieved by combining four seals such as shell, peripheral, interfacial andwire. Wire seal is accomplished by multiple ripple design, exceeding the wiresealing requirements of MIL-DTL-26482.Five keyway, three point bayonet coupling with optional rotational polarizationProtection against cross pluggingOperating temperature range from -55°C to +125°CMaximum contact resistance of 5mohmInsulation resistance is 5000Mohm at 25?C500 mating cycles, environmentally sealedWide range of wire gauges and current carrying capabilityPolychlroprene rubber compound insulatorAluminium alloy body material with electroless nickel platingCopper alloy solder socket contacts with gold platingApplicationsIndustrial, CommercialProduct InformationProduct Range: 62GBCircular Connector Shell Style: Box Mount ReceptacleNo. of Contacts: 3ContactsCircular Contact Type: Solder SocketCoupling Style: BayonetInsert Arrangement: 8-33Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Electroless NickelContact Material: Copper AlloyContact Plating: GoldInsert Rotation: NService Class: Environmentally SealedEquivalent Military Specification: MIL-DTL-26482 Series
