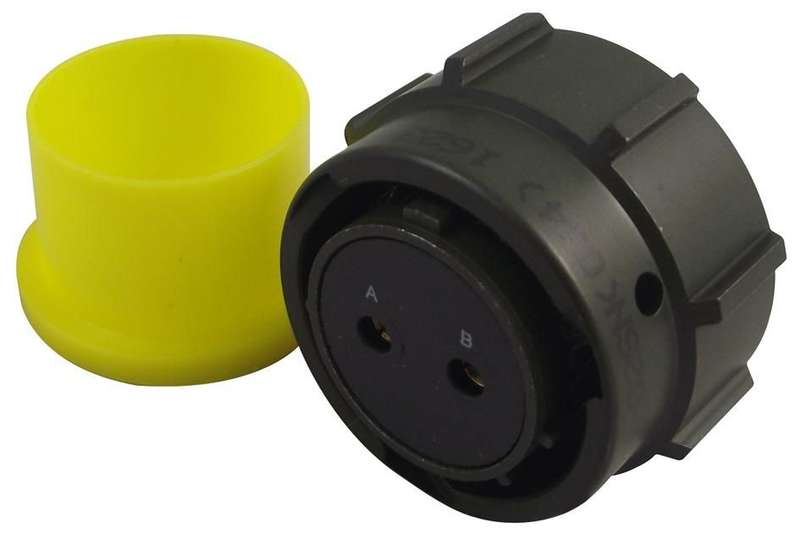

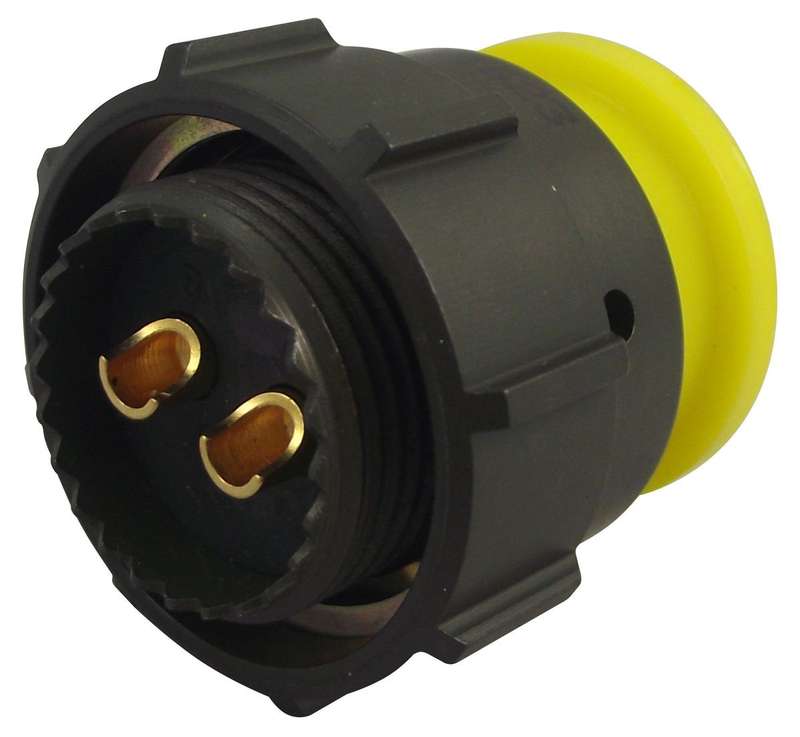

Amphenol (62GB-56TG14-02SN(044)) Circular Connector, 62GB, 2 Contacts

Circular Connector, 62GB, Straight Plug, 2 Contacts, Solder Socket, Bayonet,14-2Product OverviewThe 62GB-56TG14-02SN(044) is a 2-contact miniature Bayonet Lock Connector withgold-plated copper contacts and rough grip heavy-duty coupling ring. This14-size plug has socket type contacts, solder termination and 14-2 insertarrangement. The normal shell finish used, which has a high resistance tocorrosion and is zinc cobalt olive drab.13/16-20 UNEF Thread5mR Contact resistance5000MR at 500 to 50VDC Insulation resistance500 Operations minimum mechanical enduranceApplicationsAerospace, Defence, MilitaryProduct InformationProduct Range: 62GBCircular Connector Shell Style: Straight PlugNo. of Contacts: 2ContactsCircular Contact Type: Solder SocketCoupling Style: BayonetInsert Arrangement: 14-2Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab ZincContact Material: Copper AlloyContact Plating: GoldInsert Rotation: NService Class: General DutyEquivalent Military Specification: MIL-DTL-26482 Series
