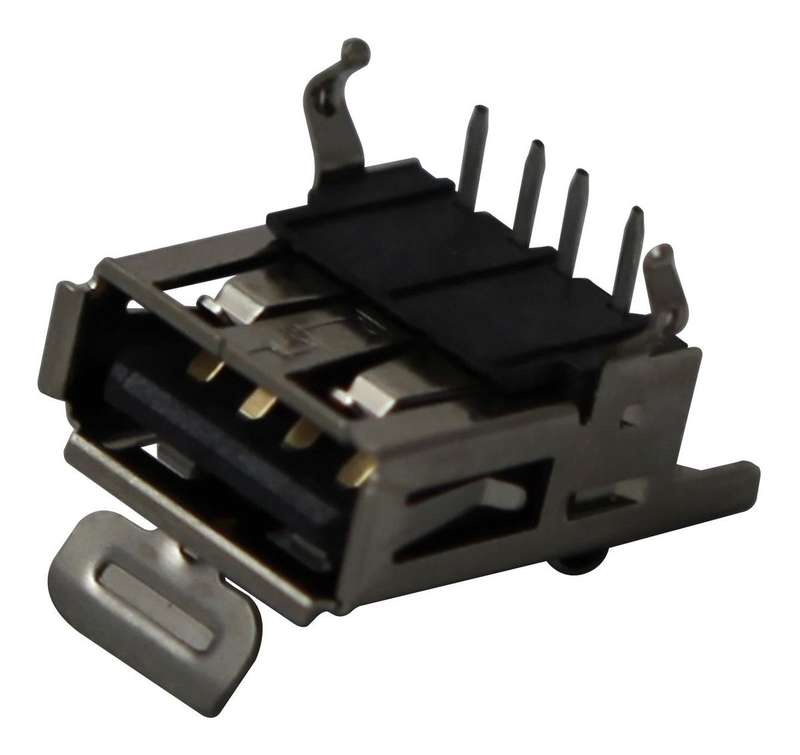

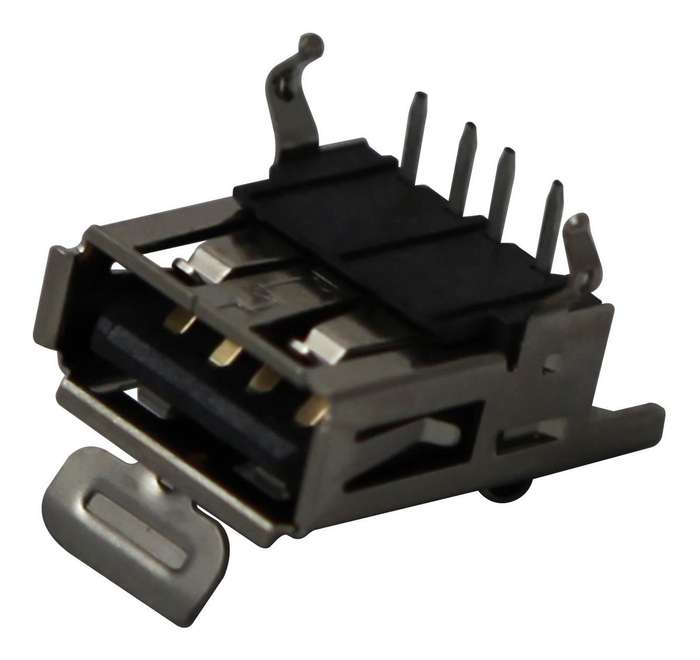

Amphenol Communications (LUSB-A111-00) USB Connector, USB Type A

USB Connector, USB Type A, Receptacle, 4 Ways, Through Hole Mount, Right AngleProduct OverviewThe LUSB-A111-00 is a standard USB Connector with 30µinch gold (0.76 microns)over nickel plated phosphor bronze contacts, UL94V-0 black high temperaturethermoplastic housing and nickel-plated brass alloy shell. The LUSB series USBconnector uses a push pull interface with no latching. It relies on the designof the mating interface and the ground tabs to maintain the connection of theplug to the receptacle. Currently there are applications in a number of marketswhere vibration and inadvertent separation of the cable is a potential problemdue to loss of data when the mated interface is accidentally broken. The latchmust be intentionally raised in order to remove the plug.1.5A Current rating30mR Maximum contact resistance1000MR Minimum insulation resistance500VAC at sea level Dielectric withstanding voltageApplicationsCommunications & Networking, Computers & Computer Peripherals, ConsumerElectronics, Audio, Industrial, Aerospace, Defence, MilitaryProduct InformationUSB Connector Type: USB Type AUSB Standard: -Gender: ReceptacleConnector Mounting: Through Hole MountOrientation: Right AngleContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: -
