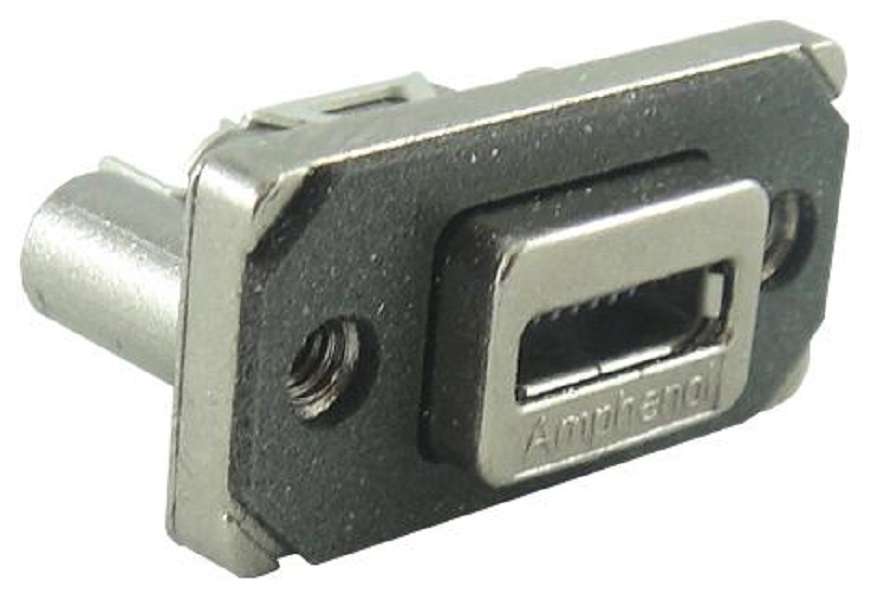

Amphenol Communications (MUSB-K552-30) USB Connector, Micro USB Type AB

USB Connector, Micro USB Type AB, USB 2.0, Receptacle, 5 Ways, Panel Mount,VerticalProduct OverviewThe MUSB-K552-30 is a 5-contact 1.8A Micro AB series rugged USB Receptacleoffers vertical termination. The receptacle with rear shield, unified thread andno dust cover. This connector meets military shock and vibration levels and IP67per IEC 60529 in mated and unmated conditions. The connector system is designedto provide a standard USB interface for enclosures exposed to harshenvironments. Connector mates with any standard USB 2.0 plug and achieves datarates up to 480Mb/s (USB 2.0). It is made of engineering thermoplastic housingand phosphor bronze with 30µ-inch minimum gold over 50µ-inch minimum nickelcontacts.30mR Maximum contact resistance100MR Minimum insulation resistance10000 Mating cyclesUL94V-0 Flammability rating-40 to 105°C Operating temperature rangeApplicationsIndustrial, Medical, Consumer Electronics, Aerospace, Defence, Military,Portable Devices, Test & Measurement, SignallingProduct InformationUSB Connector Type: Micro USB Type ABUSB Standard: USB 2.0Gender: ReceptacleNo. of Positions: 5WaysConnector Mounting: Panel MountOrientation: VerticalContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: MUSB
