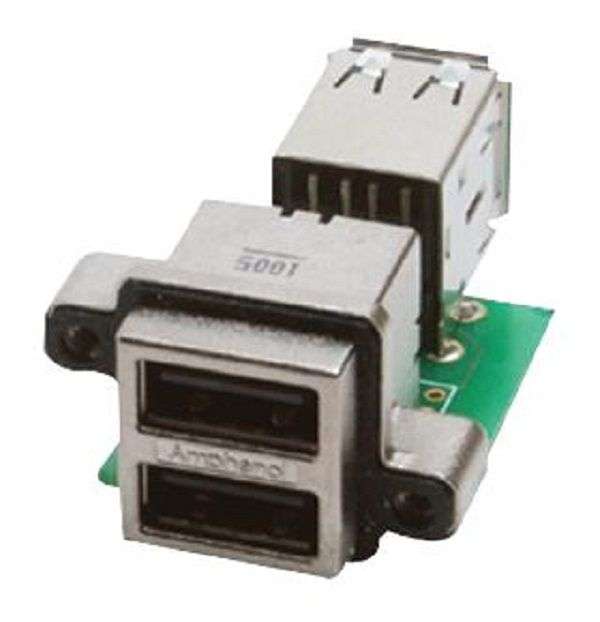

Amphenol Communications (MUSBC31130)USB Stacked Connector, USB Type A

USB Stacked Connector, USB Type A, USB 2.0, 8 Ways, Right Angle, Phosphor BronzeProduct OverviewThe MUSBC31130 is a 4-position rugged USB Connector with gold-plated over nickelcontacts, standard A series stacked receptacle type per USB 2.0, right angle onPCB with right angle matching USB type connector termination style and blackinsulator housing. This connector meets military shock and vibration levels andIP67 per IEC 60529 in mated and unmated conditions. The connector system isdesigned to provide a standard USB interface for enclosures exposed to harshenvironments. Connectors mate with any standard USB 2.0 plug. Achieves datarates up to 480Mb/s (USB 2.0).Nickel-plated die-cast zinc alloy shellWith rear shield, unified thread1.5A Current rating per contact30mR Maximum contact resistance1000MR Minimum insulation resistance-40 to +105°C Operating temperature rangeApplicationsMedical, Sensing & Instrumentation, Aerospace, Defence, Military, RFCommunications, Computers & Computer Peripherals, Test & Measurement,Communications & Networking, Consumer Electronics, Industrial, AudioProduct InformationUSB Connector Type: USB Type AUSB Standard: USB 2.0No. of Positions: 8WaysOrientation: Right AngleContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: MUSB
