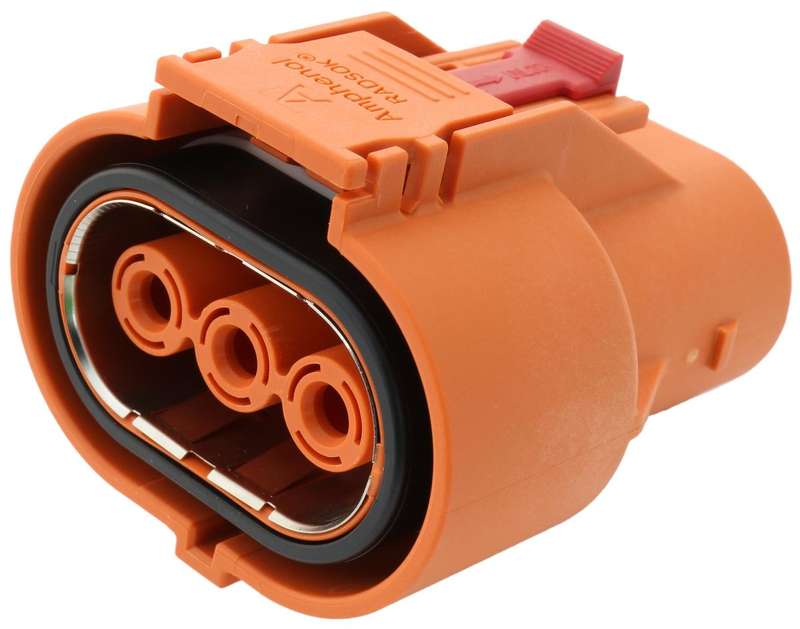

Amphenol (ELP3A3) Automotive Connector, 3 Contacts, Crimp Pin

Automotive Connector, ePower-Lite EL Series, Cable Mount Plug, 3 Contacts, CrimpPinePower-LiteThe ePower-Lite is a plastic power connector series designedto be used in the hybrid electric vehicle market. The seriesoffers 2-pole, 3-pole and 4-pole options. The robust plastic shellcan withstand high temperatures up to 125°C and providesdielectric protection for the connector.With patented RADSOK® technology, the connector featureshigher amperage, lower T-rise and voltage drop, and lessresistance.The compact, plastic shell structure is light weight with a smallfootprint, and is field installable and repairable. ePower-Lite alsoincludes a CPA to provide connector position assurance that it ismated. All these attributes make ePower-Lite the interconnect ofchoice for the EV and Hybrid markets.Features and Benefits: Plastic shell, light weight Compact design for space considerations with EVs Low mating/un-mating force Durability: 100 mating cycles minimum Water Proof: IP67 Touch-Proof: IEC 60529 Flammability: UL 94V-0 EMC optional HVIL optional RoHS CompliantProduct InformationProduct Range: ePower-Lite EL SeriesNo. of Contacts: 3ContactsAutomotive Connector Shell Style: Cable Mount PlugAutomotive Contact Type: Crimp PinConnector Body Material: Plastic BodyIP Rating: IP67Voltage Rating: 800VACCurrent Rating: 70A
