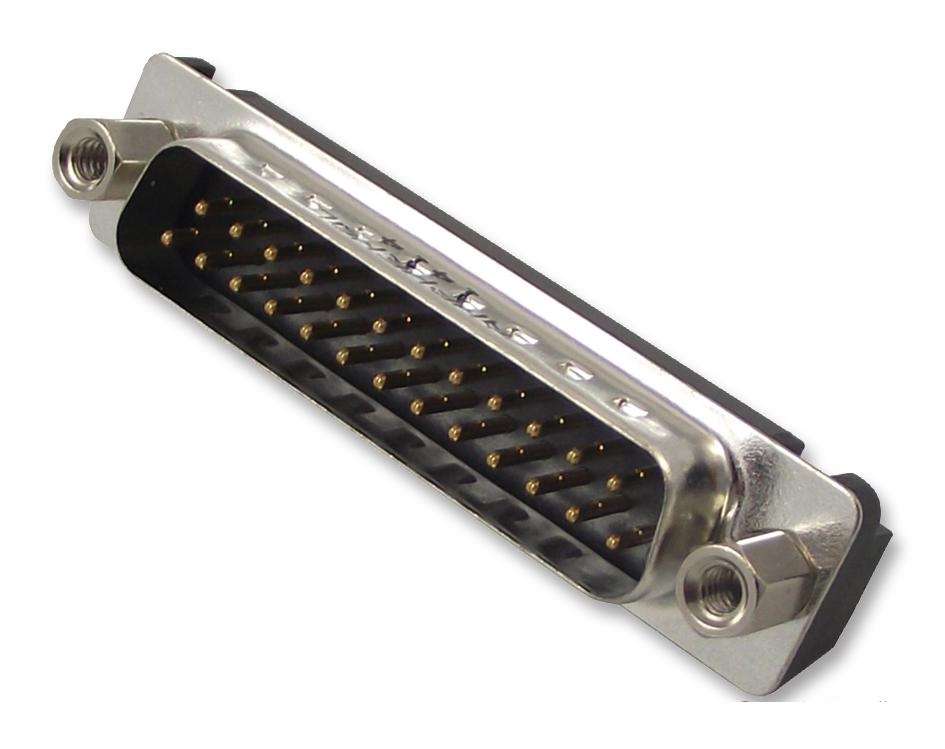

Amphenol (L717TSBH25POL2RM8C309) D Sub Connector, DB25, Standard, Plug, TS

Amphenol (L717TSBH25POL2RM8C309) D Sub Connector, DB25, Standard, Plug, TS

New 373 available
R385.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2401257
Bob Shop ID
674508321
D Sub Connector, DB25, Standard, Plug, TS, 25 Contacts, DB, SolderProduct OverviewThe L717TSBH25POL2RM8C309 is a 25-position standard D-sub Plug with gold-platedcopper alloy contacts, size-B tin over nickel-plated steel shell and aglass-filled thermoplastic insulator. The TS series D-sub connector has stampedcontacts and boardlock + front screwlock.4-40 Mount6.02mm (0.237") Termination5A Current rating600VAC at 50Hz Voltage rating1000VAC at 50Hz for one minute Dielectric withstanding voltage5000MR Insulation resistance10mR Maximum contact resistance0.76µm (30µ") Contact finish thicknessApplicationsIndustrial, Communications & NetworkingProduct InformationD Sub Connector Type: StandardNo. of Contacts: 25ContactsGender: Plug (View Associated Connectors)Product Range: TSD Sub Shell Size: DBContact Termination Type: SolderConnector Mounting: Through Hole MountConnector Body Material: Metal Body
