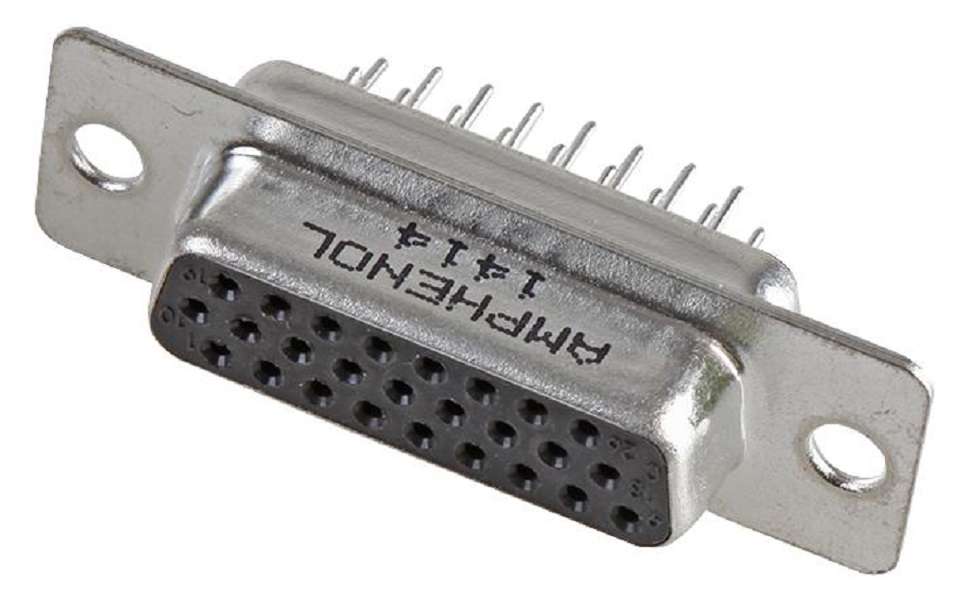

Amphenol (L77HDA26SOL2) D Sub Connector, 26 Contacts, Receptacle

Amphenol (L77HDA26SOL2) D Sub Connector, 26 Contacts, Receptacle

106 available / new
R245.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2401169
Bob Shop ID
645120476
D Sub Connector, High Density, Receptacle, HD, 26 Contacts, DA, SolderProduct OverviewAmphenol's high density D-Sub connectors complement Amphenol's extensive D-Subconnector line. The decreased contact spacing accommodates greater signaldensity in comparison to conventional D-Sub connectors.Industrial, Telecom, Any industry standard I/O connectionsShells: Steel with Nickel platingInsulator: Glass filled thermoplastic, UL 94V-0Contacts: Copper alloy, selective Gold platingCurrent Rating: 3AVoltage Rating: 600V AC/rms 50HzWithstanding Voltage: 1000V AC/rms 50HZ for one minuteInsulation Resistance: 5000MRContact Resistance: 10mR Max.Operating temperature range -55°C to +125°CProduct InformationD Sub Connector Type: High DensityGender: Receptacle (View Associated Connectors)Product Range: HDNo. of Contacts: 26ContactsD Sub Shell Size: DAContact Termination Type: SolderConnector Mounting: Through Hole MountContact Material: Copper AlloyContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
