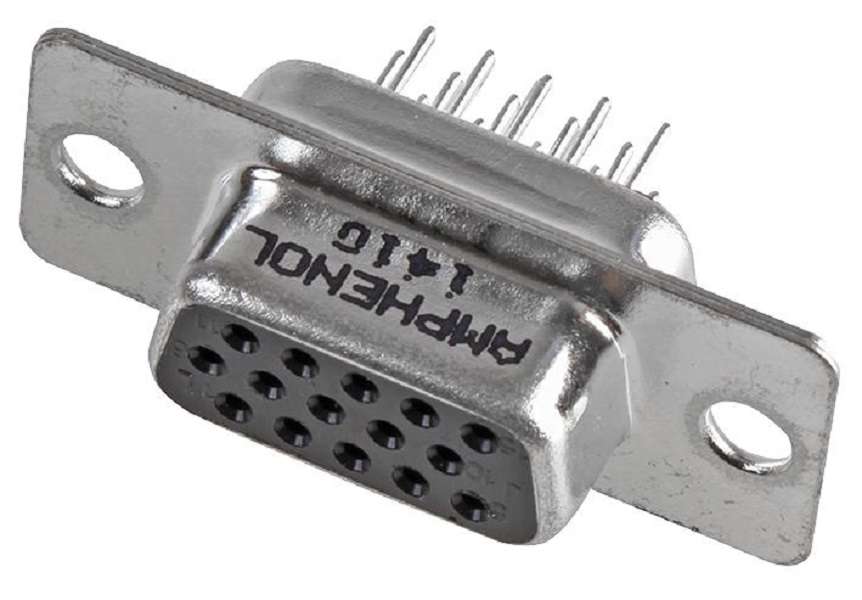

Amphenol (L77HDE15SOL2) D Sub Connector, Receptacle, HD, 15 Contacts

D Sub Connector, Receptacle, HD, 15 Contacts, DE, SolderProduct OverviewAmphenol's high density D-Sub connectors complement Amphenol's extensive D-Subconnector line. The decreased contact spacing accommodates greater signaldensity in comparison to conventional D-Sub connectors.Industrial, Telecom, Any industry standard I/O connectionsShells: Steel with Nickel platingInsulator: Glass filled thermoplastic, UL 94V-0Contacts: Copper alloy, selective Gold platingCurrent Rating: 3AVoltage Rating: 600V AC/rms 50HzWithstanding Voltage: 1000V AC/rms 50HZ for one minuteInsulation Resistance: 5000MRContact Resistance: 10mR Max.Operating temperature range -55°C to +125°CProduct InformationD Sub Connector Type: High DensityGender: Receptacle (View Associated Connectors)Product Range: HDNo. of Contacts: 15ContactsD Sub Shell Size: DEContact Termination Type: SolderConnector Mounting: Through Hole MountContact Material: BrassContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
