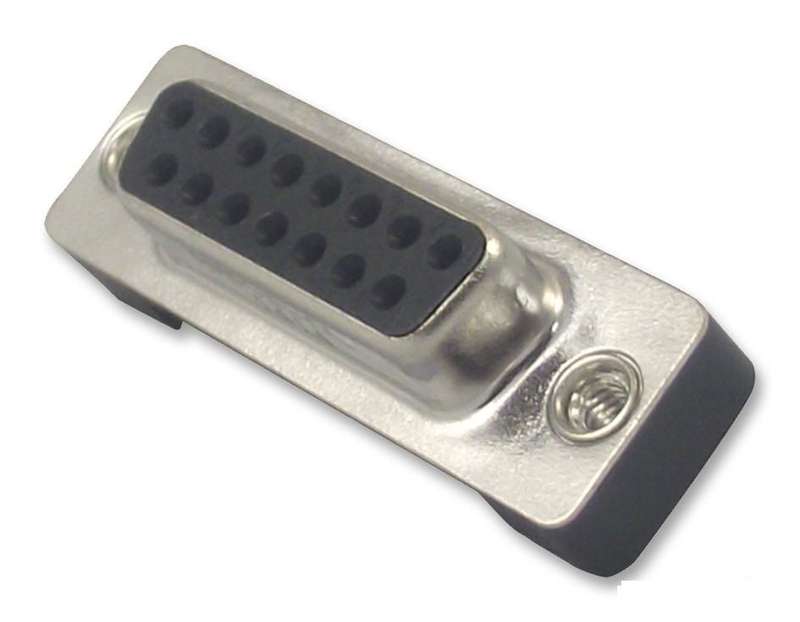

Amphenol (L77TSAH15SOL2RM5) D Sub Connector, DB15, Standard, Receptacle

D Sub Connector, DB15, Standard, Receptacle, TS, 15 Contacts, DA, SolderProduct OverviewThe TS series Straight PCB Termination D-Sub Connectors with stamped and formedcontacts. It gives high standards of quality and reliability to meet all ofcommercial requirements. It has copper alloy selective gold plating contactswith glass-filled thermoplastic insulator and steel with nickel plating shell.Available in plug and socket connectorsPositions 9, 15, 25 and 37UL94V-0 Flammability5000MR Insulation resistance10mR Contact resistance (maximum)5A Current rating-55 to 125°C Temperature rangeApplicationsCommunications & Networking, Computers & Computer Peripherals, IndustrialProduct InformationD Sub Connector Type: StandardNo. of Contacts: 15ContactsGender: Receptacle (View Associated Connectors)Product Range: TSD Sub Shell Size: DAContact Termination Type: SolderConnector Mounting: Through Hole MountContact Material: Copper AlloyContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
