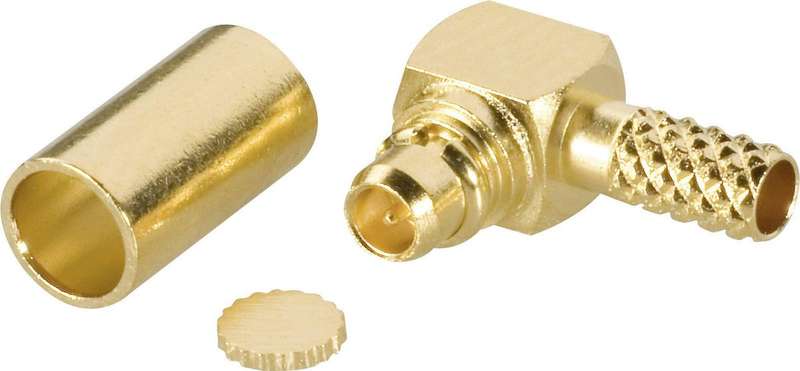

Amphenol (MMCX1112A1-3GT30G-14-50) RF / Coaxial Connector, MMCX Coaxial

RF / Coaxial Connector, MMCX Coaxial, Right Angle Plug, Crimp, 50 ohm, RG178B,RG196A, BrassProduct OverviewThe MMCX1112A1-3GT30G-14-50 is a right angle Crimp Plug with gold-plated brasscontacts and a PTFE insulation. The MMCX (also called MicroMate) is amicro-miniature connector series has a snap-lock mechanism allowing for 360degrees rotation enabling flexibility in PCB layouts. The MicroMate family ofproducts is a 6GHz 50R interconnect system and is Amphenol's smallest RFconnector line.Liquid crystal polymer housing (SMT)Broadband performance with low reflection DC to 6GHzQuick connect/disconnect snap-on mating reduces installation time500V RMS at 50Hz at sea level Dielectric working voltage500MR Insulation resistanceApplicationsRF Communications, Sensing & InstrumentationProduct InformationConnector Type: MMCX CoaxialConnector Body Style: Right Angle PlugCoaxial Termination: CrimpImpedance: 50ohmCoaxial Cable Types: RG178B, RG196AContact Material: BrassContact Plating: Gold Plated ContactsFrequency Max: 6GHzConnector Mounting: Cable MountProduct Range: -
