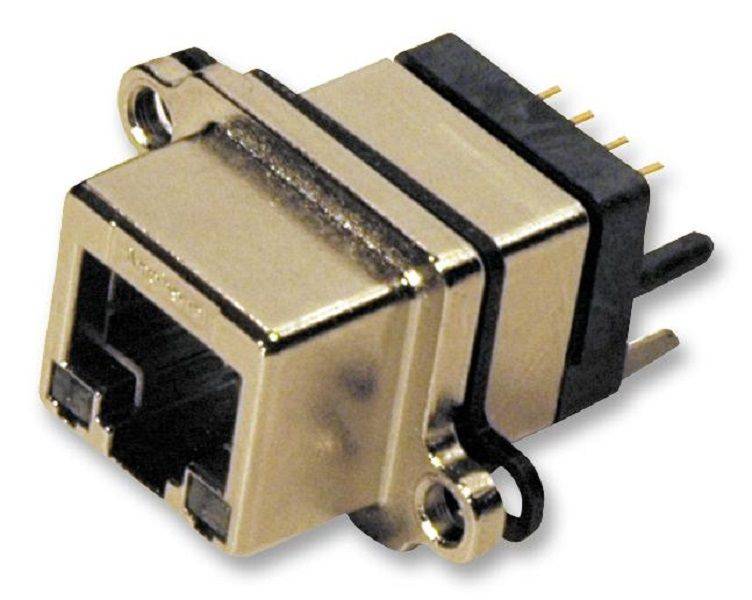

Amphenol (MRJ-5381-01) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, IP67, Through Hole MountProduct OverviewThe MRJ series Rugged RJ45 Connector has phosphor bronze with gold over nickelcontacts. It is designed to provide a standard RJ45 interface, ideal for harshenvironments where Ethernet/IP protocol is used. It has data rates conform to10BaseT or 100BaseT Ethernet. It has right angle PCB tail termination with 8 or10 positions, LED options, EMI ferrite filtering and PCB options (with matchingRJ connector, cable header and terminal block or for hand wiring). It also hasvertical PCB tail termination with 8 positions and LED options. The device bothtermination styles have dust covers for enhanced mating area protection.Protection is provided for IP67 applications per IEC 60529 specification1.5A Current rating per pin30mR Contact resistance (maximum)2500 Mating cyclesApplicationsComputers & Computer Peripherals, Communications & Networking, RFCommunications, Imaging, Video & Vision, Medical, Aerospace, Defence, Military,Test & Measurement, Consumer Electronics, Automation & Process ControlProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysIP Rating: IP67LAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: MRJ
