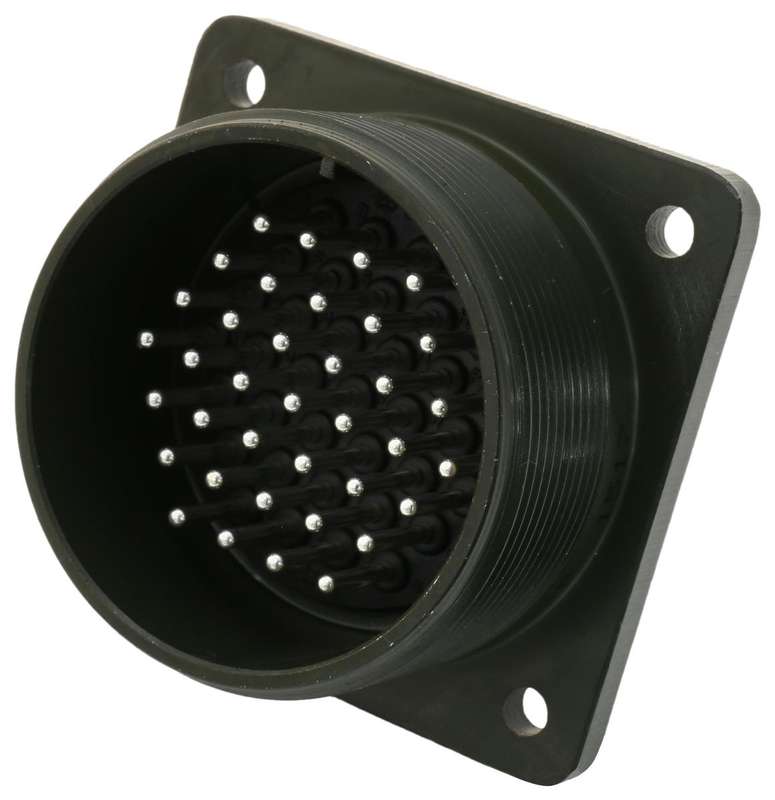

Amphenol (MS3102A-28-21P) Circular Connector, 37 Contacts, Solder Pin

Circular Connector, MIL-DTL-5015 Series, Box Mount Receptacle, 37 Contacts,Solder Pin, ThreadedProduct OverviewThe MS3102A-28-21P from Amphenol is MIL-DTL-5015 series box mount receptaclewith 37 contacts. MIL-DTL-5015 series connectors are available in a wide rangeof shell materials and finishes with 48 and 500 hour salt spray platingexposure. These connectors offer high density contact arrangements in aminiature circular shell and combines high coupling durability in medium toheavy weight cylindrical construction. It has a well-proven electricalcapability and is designed to withstand extreme shock, exposure and vibration.5 shell styles with 19 shell sizesSingle key/keyway shell polarizationHigh reliability, moisture and corrosion resistant100 mating cycles, IP67 environmental protectionOperates at extreme temperature range of -55°C to +125°CMinimum insulation resistance is 5000Mohm at 25°CQuick mating, threaded couplingEnvironmental sealing, low weight and cost effectiveAluminium alloy body material with olive drab chromate over cadmium platingBrass, copper alloy solder pin contacts with silver platingApplicationsAerospace, Defence, Military, IndustrialProduct InformationMilitary Specification: MIL-DTL-5015 SeriesCircular Connector Shell Style: Box Mount ReceptacleNo. of Contacts: 37ContactsCircular Contact Type: Solder PinCoupling Style: ThreadedInsert Arrangement: 28-21Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Brass, Copper AlloyContact Plating: SilverInsert Rotation: NService Class: General DutyProduct Range: MIL-DTL-5015
