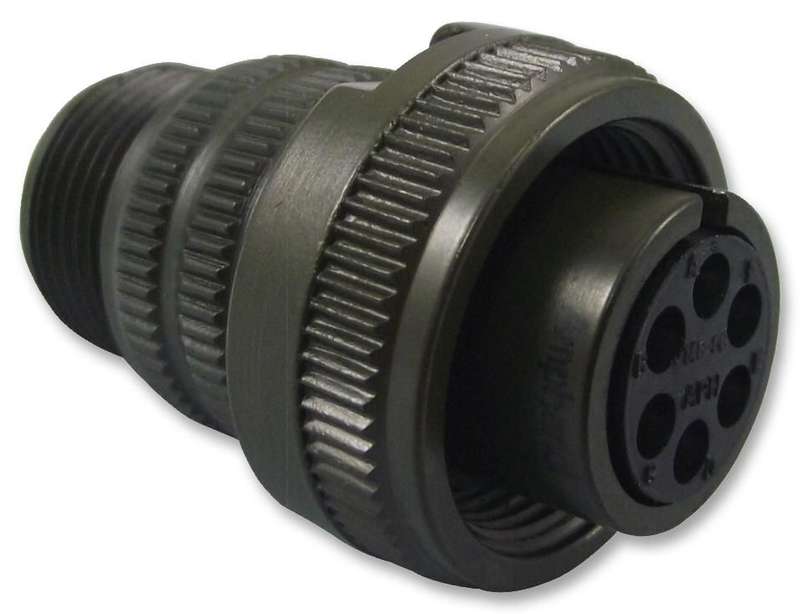

Amphenol (MS3106A-18-1S) Circular Connector, 10 Contacts, Solder Socket

Circular Connector, MIL-DTL-5015 Series, Straight Plug, 10 Contacts, SolderSocket, ThreadedProduct OverviewThe MS3106A-18-1S is a 10-contact Circular Connector with silver-plated coppercontacts, solid shell and 14S-6 insert arrangement. This straight plug hassocket type contacts and high grade aluminium alloy shell. Electricallyconductive cadmium plate finish with an olive drab chromate after-treat offerscorrosion resistance. Resilient neoprene inserts provides high dielectricstrength, high arc resistance and resistance to vibration. This connectorrepresents well-proven electrical capability at an acceptable cost for mostequipment where durability is important. MIL-C-5015 features threaded coupling,single key and keyway polarization representing maximum simplicity in design.Suitable for ordnance and shipboard installation where mechanical forces andphysical parameters are not subject to extreme or rapid environmental changes.Medium to heavy weight cylindricalDurable and field-proven design3000VAC RMS at Sea level operating voltageSplit end bell service classApplicationsAerospace, Defence, Military, Communications & Networking, Computers & ComputerPeripheralsProduct InformationMilitary Specification: MIL-DTL-5015 SeriesCircular Connector Shell Style: Straight PlugNo. of Contacts: 10ContactsCircular Contact Type: Solder SocketCoupling Style: ThreadedInsert Arrangement: 18-1Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Brass, Copper AlloyContact Plating: SilverInsert Rotation: NService Class: General DutyProduct Range: MIL-DTL-5015
