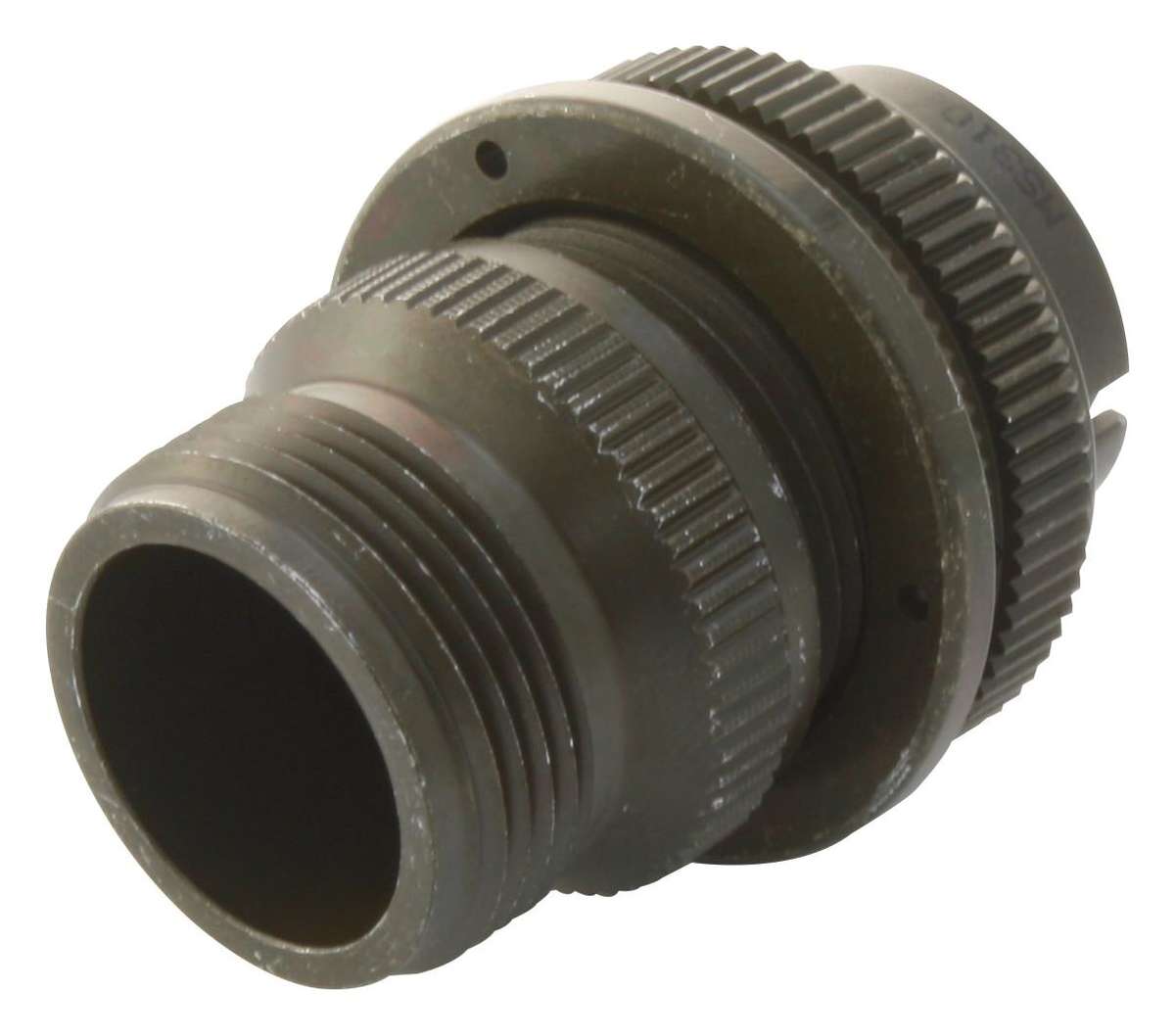

Amphenol (MS3106A16S-1S) Circular Connector, 7 Contacts, Solder Socket

Circular Connector, MIL-DTL-5015 Series, Straight Plug, 7 Contacts, SolderSocket, Threaded, 16S-1Product OverviewThe MS3106A16S-1S is a 7-contact military standard Circular Connector withsilver-plated copper contacts, straight plug, solid shell for general,non-environmental applications, 16S-1 insert arrangement and socket contacttype. Shell components are fabricated from high grade aluminium alloy.Electrically conductive cadmium plate finish with an olive drab chromateafter-treat offers corrosion resistance. Resilient neoprene inserts provideshigh dielectric strength, high arc resistance and resistance to vibration. Thisconnector represents well-proven electrical capability at an acceptable cost formost equipment where durability is important. MIL-C-5015 features threadedcoupling, single key and keyway polarization representing maximum simplicity indesign. Suitable for ordnance and shipboard installation where mechanical forcesand physical parameters are not subject to extreme or rapid environmentalchanges.Medium to heavy weight cylindricalDurable and field-proven design3000VAC (RMS) at Sea level operating voltageSplit end bell service classApplicationsAerospace, Defence, Military, Communications & Networking, Computers & ComputerPeripheralsProduct InformationMilitary Specification: MIL-DTL-5015 SeriesCircular Connector Shell Style: Straight PlugNo. of Contacts: 7ContactsCircular Contact Type: Solder SocketCoupling Style: ThreadedInsert Arrangement: 16S-1Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Brass, Copper AlloyContact Plating: SilverInsert Rotation: NService Class: General DutyProduct Range: MIL-DTL-5015
