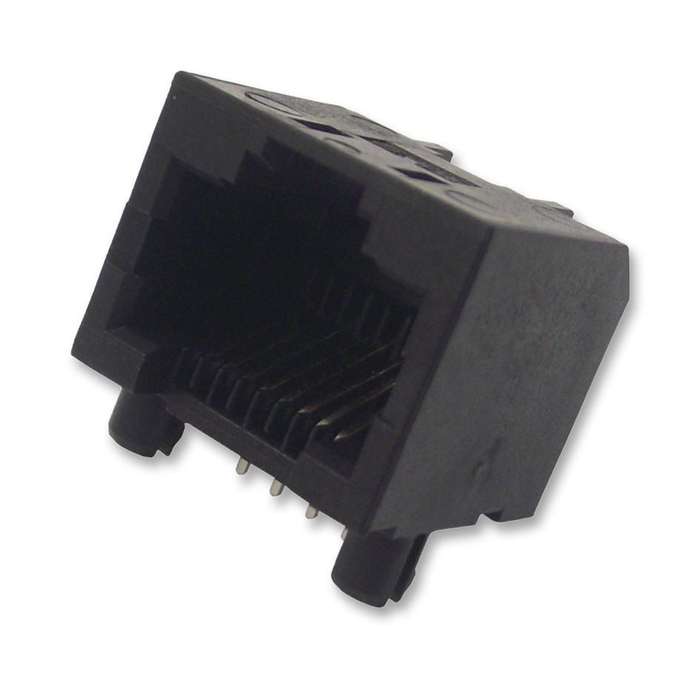

Amphenol (RJHSE-5080) Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe RJHSE-5080 is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs,high temperature engineering thermoplastic insulator and right angle,8-position, 50µinch gold-plated phosphor bronze hard temper contacts. Thisproduct is ideal for LAN applications such as adapter cards and routers.Tin-plated LED tails20mR Maximum contact resistance500MR at 500VDC for 2 minutes Maximum insulation resistance1.5A Current rating125VAC Voltage rating1000VAC/minute at 60Hz DMVBlocked LED-2 (left) and LED-1 (right)-55 to + 85°C Operating temperatureApplicationsCommunications & NetworkingProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: RJHSE
