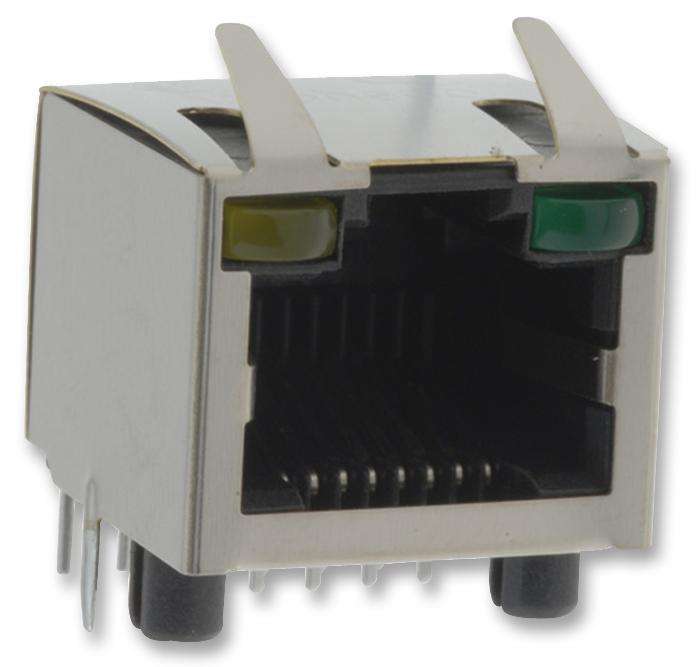

Amphenol (RJHSE-5381) Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe RJHSE-5381 is a 8-position single-port RJ45 high speed Modular Jack, RJHSEseries, gold-plated phosphor bronze contacts and UL94V-0 flammability-ratedblack high temperature thermoplastic housing, right angle mount, yellow left andgreen right LED. The RJHSE inverted modular jack with superior EMI performancesupports Ethernet protocols. Shielding available for increased EMI performanceand LEDs for link activity and network speed verification.Stainless steel with tin dipped tails shieldTin plating on LED tails20mR Maximum contact resistance500MR Minimum at 500VDC for 2 minutes maximum insulation resistance1.5A Current rating125VAC Voltage rating20mA Typical LED forward DC current5V Minimum LED reverse voltageApplicationsCommunications & Networking, Wireless, Computers & Computer Peripherals,Consumer Electronics, Security, Multimedia, Industrial, Audio, Aerospace,Defence, MilitaryProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysIP Rating: -LAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: RJHSE
