Amphenol (T816140A1S101CEU) Pin Header, Wire-to-Board, 2.54 mm, 2 Rows

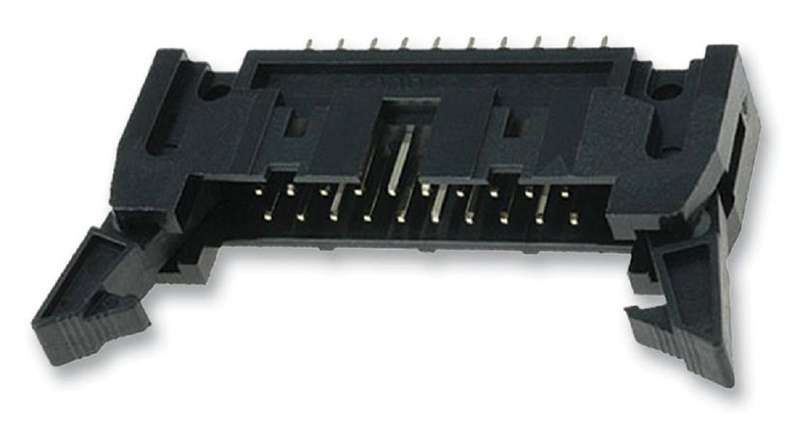

Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole, T816Product OverviewThe T816140A1S101CEU is a 40-way 2-row 2.54mm straight through-hole Header withshort latch. This T816 series wire-to-board connector has gold flash over50µinch nickel plated brass contacts, black housing and a glass-reinforced PBTinsulator.20mR at 1ADC Maximum contact resistance1000MR at 500VDC Minimum insulation resistance500VAC at 60Hz for one minute Dielectric withstanding voltage3A Current rating per contact250VAC at 60Hz Voltage ratingApplicationsIndustrialProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 40ContactsContact Termination Type: Through HoleProduct Range: T816Connector Shroud: ShroudedContact Material: BrassContact Plating: Gold Plated Contacts
