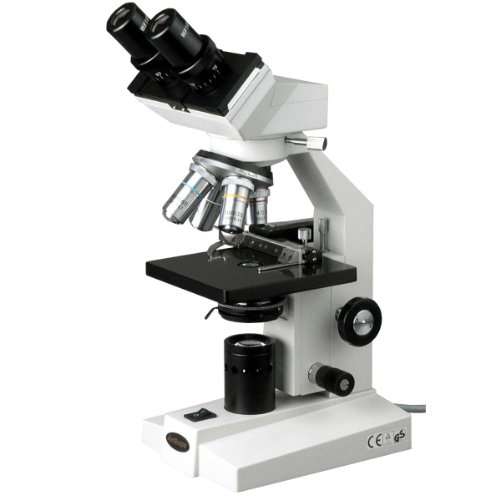

AmScope B100B-MS Digital Compound Binocular Microscope, 40X-2000X Magnification, Brightfield, Tungst

AmScope B100B-MS binocular compound microscope offers eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X,1000X & 2000X. It comes with a binocular sliding head, two pairs of widefield eyepieces, four Archromatic objectives, coarse & fine focusing, mechanical stage, and electrical illumination system. It is an ideal instrument for clinical examination, teaching demonstration, and biological, bacteriological & pharmaceutical researches. It is brand new in factory box.

AmScope B100B-MS microscope is manufactured under ISO 9001 Quality Control Standards. It was made by the same technicians and on the same production line as optical instruments for Leica, Zeiss, Nikon and Olympus.

Binocular Microscope Sliding Head, Microscope Body Frame w/ Stage, Base and Illumination System, DIN Standard Objectives, 4X, 10X, 40X and 100X, Widefield 10X Eyepieces, Widefield 20X Eyepieces (pair), Mechanical Stage (pair), Wrench for Focusing Tension Adjustment, Color Filters, Dust Cover, Spare Bulb, Sample Immersion Oil, Customer Information Sheet (manual download link included)

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries. AmScope has been manufacturing microscopy equipment since 1996, headquartering in Irvine, CA.

• 45 Degree Inclined 360 Degree Swiveling Sliding Binocular Head
• Mechanical Stage with Stain Resistant Finish for Easy Slide Gliding Control
• Separate Coarse & Fine Focusing
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Professional Grade Microscope
• Great for Clinics, Vets, Doctors, Students
• Four Levels of Magnification: 40X, 80X, 100X, 200X, 400X, 800X,1000X & 2000X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm & Filters
• Built-In Illumination System
• Focusing Control Knobs on Both Sides
• Full Optical Glass Elements
• All Metal Mechanical Components
• Precise Ground Glass Lens
• Adjustable Interpupillary Distance
• Adjustable Diopter on Oculars
• Solid Metal Frame Construction with Stain Resistant Enamel Finish
• Nosepiece: quadruple
• Head: 45 degree inclined sliding binocular
• Interpupillary Distance: 2-3/16 inch - 3-0 inch (55 - 75mm)
• Wide-field Eyepiece: WF10X/18 and WF20X
• Achromatic Objectives: 4X, 10X, 40X (spring) and 100X (spring,oil).
• Stage Dimensions: 4-5/16 inch x 4-3/4 inch (110x120mm)
• Abbe Condenser: NA=1.25 with iris diaphragm & filter
• Illumination: tungsten lamp, 110V/20W
• Accessories: dust cover, green & blue filters, and a bottle of immersion oil
• Manufactured under ISO 9001 Quality Control Standard
• Excellent (5) year factory warranty
