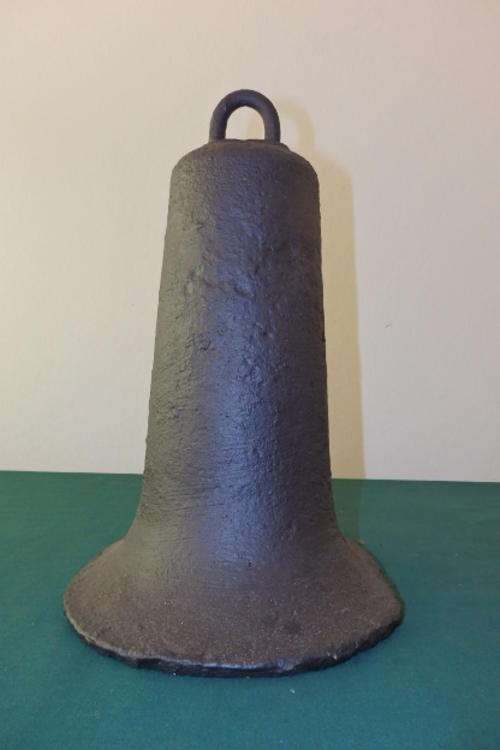

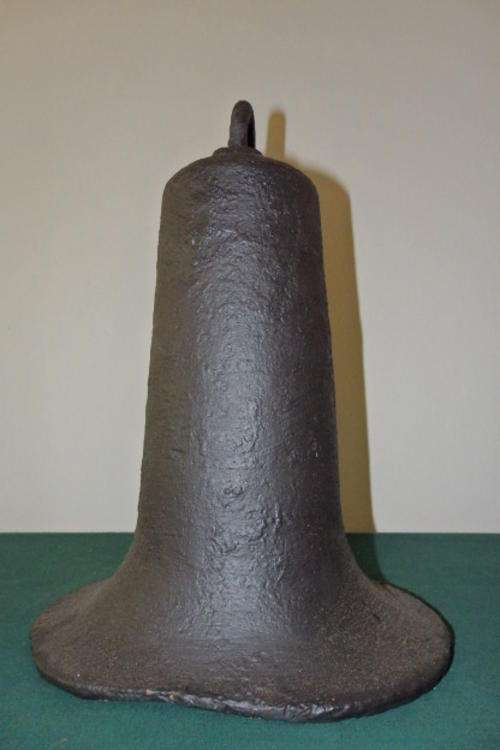

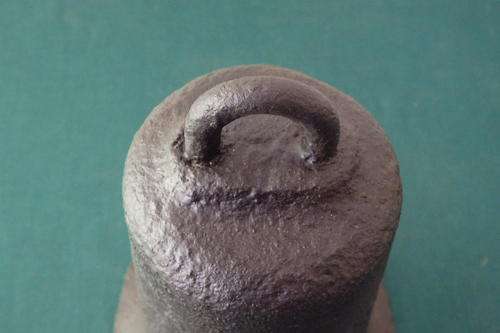

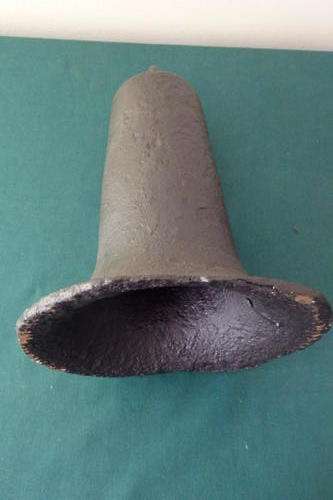

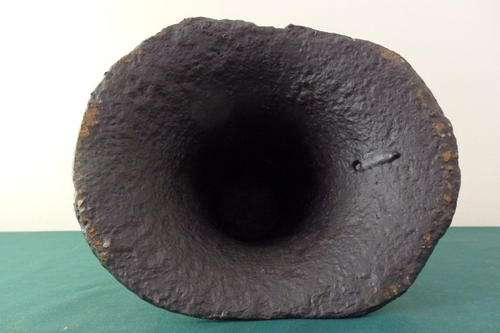

AN AWESOME ANTIQUE VICTORIAN "BURLINGTON" CISTERN BELL USED IN VICTORIAN TOILETS

PLEASE VIEW THE PICS VERY CAREFULLY FOR MORE DETAILS AND THE GENERAL CONDITION. OUR OTHER AWESOME ITEMS CAN BE VIEWED AT: http://www.bidorbuy.co.za/seller/2168112/robsam17

THE BURLINGTON, OR BELL, STYLE CISTERN IS SUITABLE FOR HIGH LEVEL CISTERNS AND IS NOW CONSIDERED OLD FASHION BUT CAN STILL BE FOUND IN OLD HOUSES OR HOUSES REFURBISHED TO BE TRUE TO THE VICTORIAN AGE. THESE CISTERNS ARE NORMALLY MADE FROM CAST IRON AND ARE EASILY RECOGNISED BY THE 'WELL' IN THE BASE INTO WHICH THE 'BELL' SITS. THE FLOW-DOWN PIPE TO THE LAVATORY PAN IS POSITIONED WITHIN THE BELL WITH THE OPEN TOP JUST ABOVE THE NORMAL CISTERN WATER LEVEL. WHEN THE CISTERN CHAIN IS PULLED, THE LEVER AT THE TOP OF THE CISTERN LIFTS THE BELL DRAWING THE WATER UNDER THE BELL UPWARDS INTO THE TOP OF THE OPEN FLOW-DOWN PIPE, ONCE THE WATER STARTS DOWN THE PIPE, IT STARTS A SYPHON EFFECT DRAWING THE REST OF THE WATER FROM THE CISTERN UNTIL AIR IS DRAWN UNDER THE BOTTOM OF THE BELL. THE BURLINGTON BELL STYLE CISTERN DOES NOT HAVE ANY PARTS TO WEAR AND SO IS HIGHLY RELIABLE. THEIR WEAKNESSES ARE: IF THE WATER LEVEL IS SET TOO LOW, THEY CAN BE TEMPERAMENTAL IN OPERATION AS IF INSUFFICIENT WATER GOES DOWN THE PIPE WHEN THE CHAIN IS PULLED, IT WILL NOT START THE SYPHON EFFECT. LOW WATER LEVELS CAN BE REMEDIED BY ADJUST THE FLOAT CONTROLLING THE WATER INLET VALVE. THE "BELL" IS 30cm TALL AND ROUGHLY 22.5cm ACROSS THE BASE.

LINK: www.diydata.com/plumbing/old_cistern/cisterns_old.php
