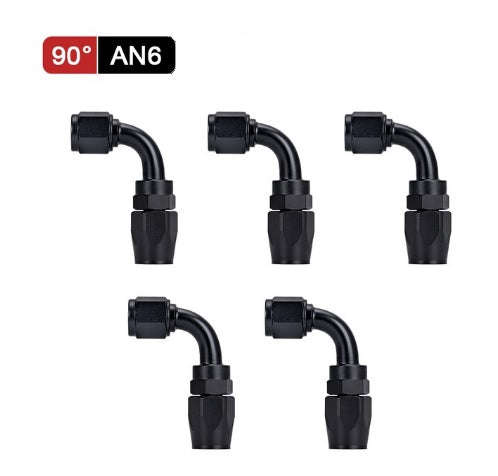

AN6 90 Degree Oil/Fuel Hose End Fitting

AN6 90 Degree Oil/Fuel Hose End Fitting - BLACK (10005530)

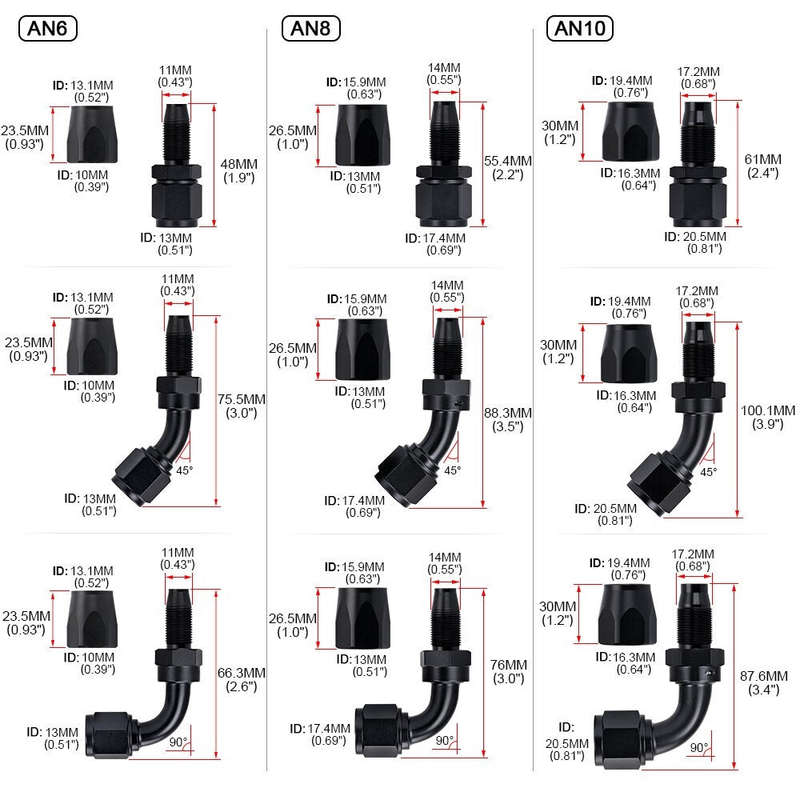

Size: AN  6/8/10

AN6, AN8, AN10 not means 6mm, 8mm, 10mm. Which corresponds to the inner diameter of the tubing were 8.7mm, 11.11mm, 14.2mm. Therefore, when purchasing products, be sure to pay attention to the inner diameter of the tubing.

Products Angle: 90

Material: Aluminum

Color: Black

Applicable models: Generic models

Application:

• Apply to all oil/ fuel/ water/ fluid/ air/gas/coolant line, cars with turbo modification, installation of the oil cooling radiator connections. Can't use with E85.
• Work with all CPE stainless braided and nylon braided hoses.
• Not compatible with PTFE hoses/ rubber hoses.

Package Includes:

1 X Hose End Fitting

Product Features:

• 100% quality assurance tested, more responsive, less expensive, easier to install.

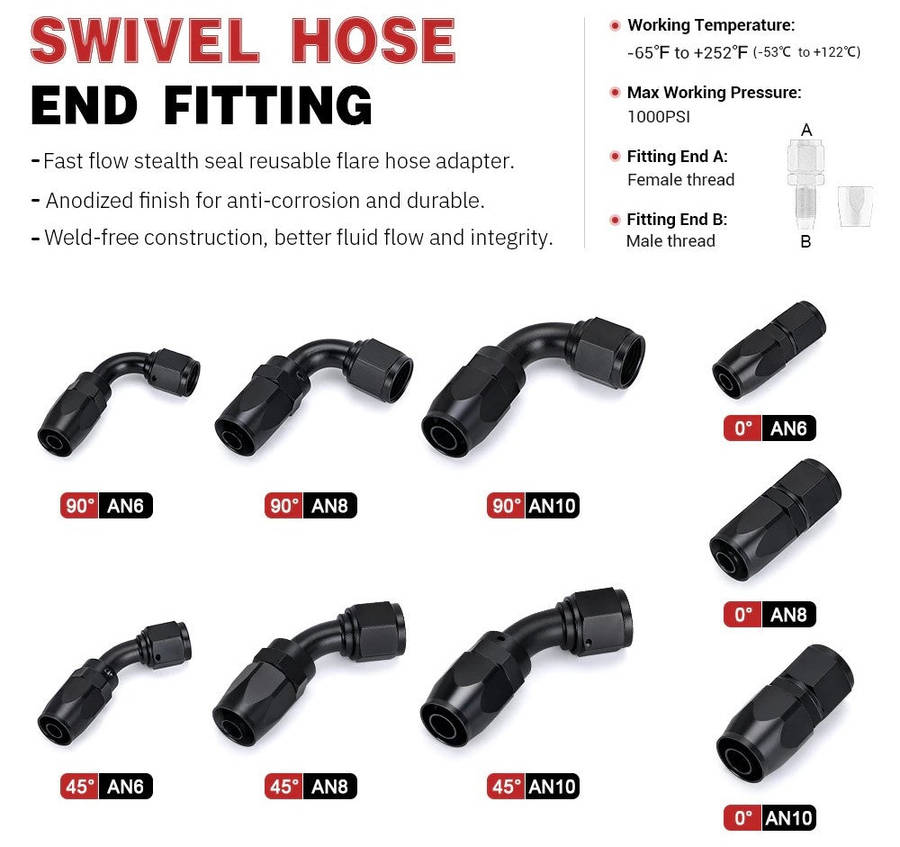

• Fast flow stealth seal reusable flare hose adapter.
• Anodized finish for anti-corrosion and durable.
• Retention pins allow 360° of adjustment after installation.

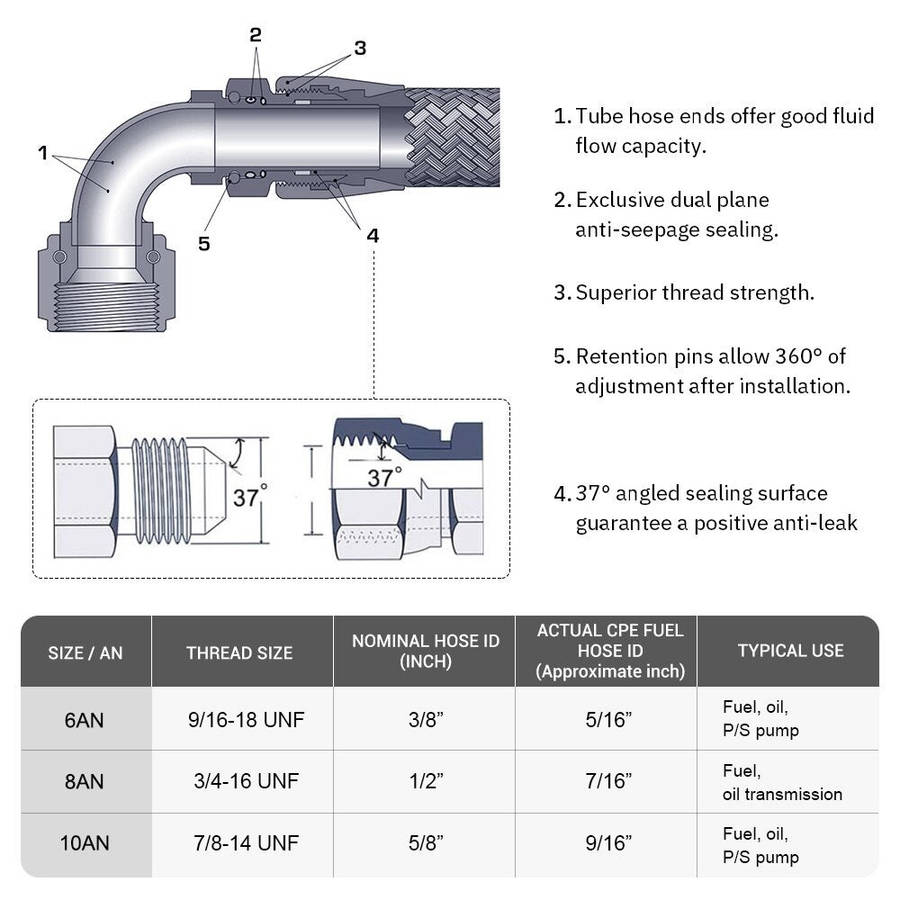

• Superior thread strength, 37° angled sealing surface guarantee a positive anti-leak seal.
• Weld-free construction gives better fluid flow and integrity over the normal ends.
• Fitting Style: Swivel
• Fitting End A: Female thread
• Fitting End B: Male thread
• Working Temperature: -65to+252(-53 to+122)
• Max Working Pressure: 1000PSI

Fast connection design, easy to install, simple to use. Using red and blue color design, not only durable, but stylish, personalized to meet the modern demand for cars.
